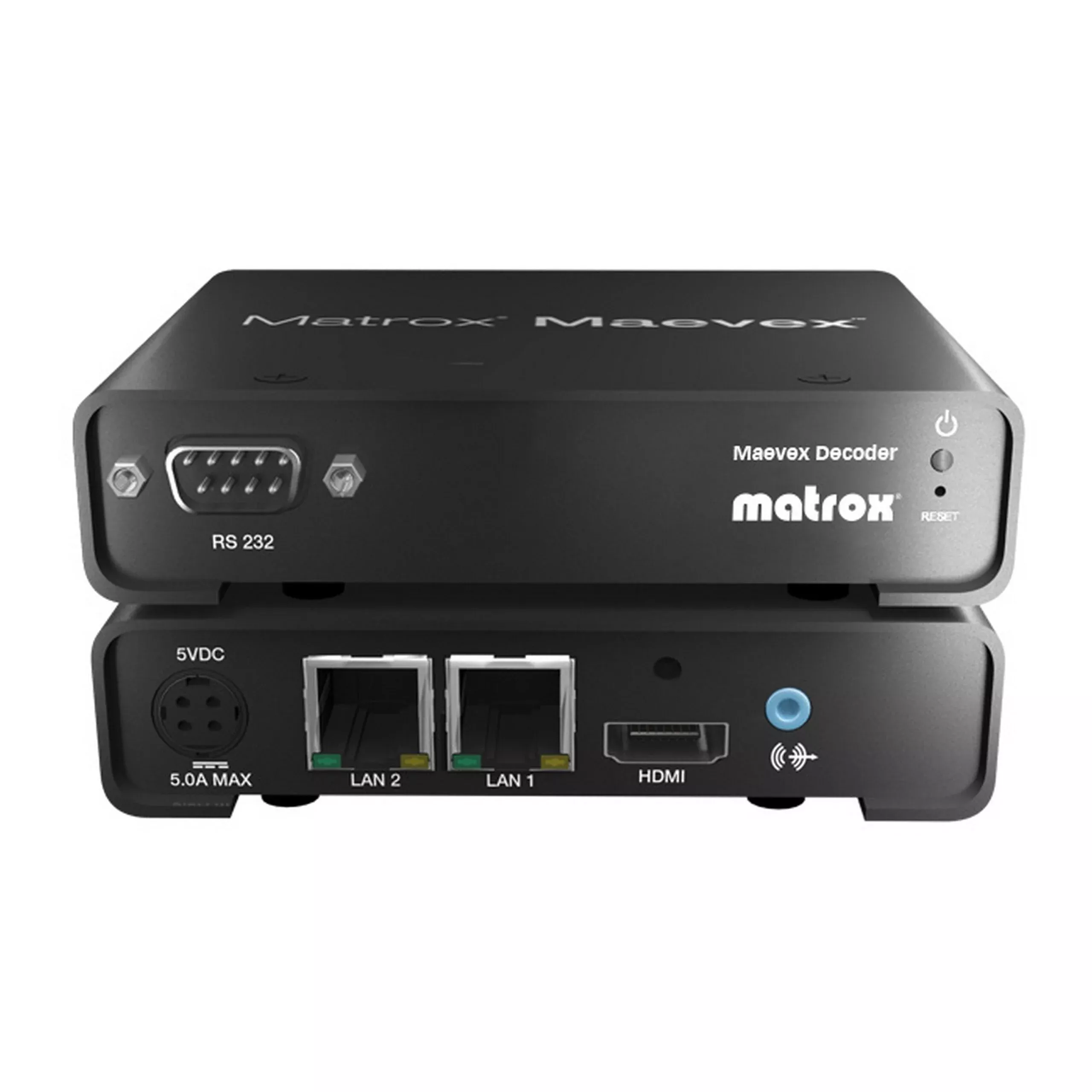

Matrox Maevex 5100 Full HD Decoder
The MatroxMaevex video distribution over IP solution includes the Maevex 5100 Seriesencoders and decoders that can extend or record up to 1080p60 video and audioover a standard IP network at user-defined low bitrates for excellent qualityand minimal network bandwidth consumption. The Maevex encoder streams orrecords high-quality video and audio and uses the H.264 video compressionstandard. It can stream to Maevex decoders or any device or PC that supportsthe required network protocols. It can also record to a shared network or NASdrive. The robust Maevex PowerStream Plus software application is included withthe hardware and is used to remotely discover, manage, and adjust the Maevexnetwork and lets administrators conveniently define multiple stream parametersand balance network bandwidth consumption and quality. The PowerStream Plus APIand Maevex 5100 Series REST API are also available and grant integrators anddevelopers the ability to build personalized Maevex control applications and/orto integrate Maevex functionality in existing or even third-party applications.
Key Features
- Encode/recordup to 1080p60 and 1920×1200 video and audio
- H.264compression for high-quality, low-bandwidth AV-over-IP
- Support forwide-screen and standard aspect ratios and many resolutions
- Scale streamsbefore distribution for lower bandwidth consumption
- HDMI oranalog audio support
- Openencoding allows for third-party software decode (e.g. VLC)
Recording: - Record up to1080p60/1920×1200 to NAS or shared network drive
- Controlfrequency and duration of recording
- Schedule thestart time and date of recording sessions
- Recordeduser-defined file name includes timestamp for easy file management
Network management: - Operates onstandard 100/1000Mb Ethernet networks
- Auto-detectand discover Maevex units on subnet (DHCP server required)
- Full/half-duplexmode and static IP address support
- CBR, VBRsupport
- Networkbitrate control (100 Kbps – 25 Mbps)
Failsafe: - Play backpre-recorded content at the decoder in case of a network disruption or ifencoder stops streaming (e.g. loss of power)
- Programmabletime delay before failsafe activates
- Resumes laststreaming activity upon power return
PowerStream Plus control software - Remotelymanage the entire Maevex network from one application
- Compatiblewith Maevex 5100 and 6100 Series
- Fine-tuneencode/decode parameters and adjust bitrates
- Convenientlyaccess IP address, bitrate, and other vitals
- Scale andcrop content to fit different outputs
- Includedwith Maevex 5100 (free download)
PowerStream Plus API - Based oneasy-to-use .NET programming language for Windows and Mono for Linux
- Supportsrapid customization and command-level access
REST API - Lower-levelAPI for even greater flexibility and direct access to Maevex 5100 units
- Flexible andportable software development
Other Benefits: - Daisychaindecoders and extend network via integrated network switch
- Failureresilience-power, network, and device auto-recovery features
- Reliable,solid-state, energy-efficient design
- Localreal-time pass-through and confidence preview on encoder
- PowerStream-controlleduser access from secured PC
- Detailed LEDindicators for easy and effective troubleshooting
- Customizablebitmap for encoder/decoder splash screen
- Rackmountablewith optional rackmount tray and accessories
TechnicalSpecifications
Maevex 5150 Encoder
Video Input:
HDMI withdigital L-PCM audio
DVI viaDVI-to-HDMI adapter
Resolutionsup to 1920x1080p60, 1920×1200(60Hz) and many more wide-screen andstandard-definition resolutions
Video Output:
HDMI withdigital L-PCM audio, local pass-through w/o scaling or confidence preview w/optional scaling
DVI via HDMIto DVI-D adapter, local pass-through w/o scaling or confidence preview w/optional scaling
HD15, AnalogVGA – confidence preview w/ optional scaling
Resolutionsup to 1920x1080p60, 1920×1200(60Hz), 1920x1080i50, 1920x1080i60
Procampcontrol: contrast, brightness, saturation, hue
Scaledoutput (i.e., 1080p60 input/720p60 scaled output)
Audio Line-In: 3.5mm analog stereoaudio
Audio Line-Out (Local Pass-Through): 3.5mm analog stereo audio
NetworkConnector: RJ45
Maevex 5150 Decoder
Network Connectors: 2 x RJ45 (fullyswitched)
Video Output :
HDMI withdigital L-PCM audio
Resolutionsup to 1920x1080p60, 1920×1200(60Hz) and many more wide-screen andstandard-definition resolutions
ProcAmpcontrol: contrast, brightness, saturation, hue
Destinationcropping support
Independentfailsafe output
Audio Line-Out: 3.5mm analog stereoaudio
Video Encoding / Decoding
Single-Channel HD: Up to 1920x1080p60and 1920×1200(56Hz) and many more wide-screen and standard-definitionresolutions
Compression Standard: H.264/MPEG-4 Part10 (AVC)
Profiles: Main
Levels: Up to 4.2
Bitrates: 100 Kbps to 25 Mbps
Rate Control: CBR, VBR, Favor Speed,Favor Quality, Adjustable GOP (Group Of Pictures) Size
Encoder Recording Mode
Record anysupported resolution to NAS or shared network drive
File format: .mp4
Userdefinable filename prefix
Autotimestamp in filename
Programmable:
Recordingstart date / time and duration
Maximum filelength
Filefrequency
Full framerate or user selectable from list
Audio Encoding/Decoding
Compression Standard: MPEG-4 AAC-LC
Channels: 2 channel (stereo), HDMI withdigital L-PCM audio
Analog Sample Frequency: 32, 44.1, and48kHz
Bitrates: 96, 128, 192, and 256 Kbps
Networking Interface
100/1000base-T Ethernet: 1000 Mbps fullduplex, 100 Mbps half/full duplex
Streaming Protocols: RTSP/RTP/RTCP (allrequired) over UDP
Command & Control Protocols: HTTPS
IPV4 Support
Unicast,Multicast and Multi Unicast
DHCP(Default) / Fixed IP Address Support
CAT5-or-BetterNetwork Cables
PowerStream Plus (free download)
Compatiblewith Maevex 5100 Series and Maevex 6100 Series
Networkdiscovery
Frame ratemanagement
Resolutioncontrol
Scalingmanagement
Maevexnetwork configuration & control
Encoding anddecoding control and manipulation
Passwordprotection
Failsafeover network FW updates
Third-partyRS-232 connectivity
DecoderFailsafe mode
PowerStream Plus API for Windows and Linux
Full-accessto entire feature set via API
.NET 4.5.1or higher, stand-alone library and Mono 5.2 or higher for Linux
REST API
Availablefor lower-level development
Supported Operating System:
MicrosoftWindows 10 (64-bit)
WindowsServer 2016
Windows 7 (32-bit,64-bit)
WindowsServer 2008 R2
Power Supply
100-240V ACIn, 5VDC Out, 15W
DIN4 LockingPower Connector
Power CordsIncluded: US, EU, UK
Regulatory
CE/FCC/VCCI/ICES/C-Tick/KCCClass B, ROHS/WEEE
ROHS/WEEE
Environmental
OperatingTemperature: 0 to 45 degrees Celsius
Non-OperatingTemperature: -40 to 55 degrees Celsius
OperatingHumidity: 20 to 80% (non-condensing)
Non-OperatingHumidity: 5 to 95% (non-condensing)
MTBF
Encoder:135.05 years @ 40 degrees Celsius (excl. power supply)
Decoder:164.81 years @ 40 degrees Celsius (excl. power supply)
ExternalPower Supply: 11.45 years @ 25 degrees Celsius, full load
Fanless (nomoving parts)
Mechanical
DimensionsEncoder: 21.59cm x 2.59cm x 10.16cm (8.50″ x 1.02″ x 4.00″)
DimensionsDecoder: 12.83cm x 2.59cm x 10.9cm (5.05″ x 1.02″ x 4.29″)
WeightEncoder: 378g (excl. external power supply and power cords)
WeightDecoder: 286g (excl. external power supply and power cords)
Rackmountablewith optional rackmount tray and accessories
Encoder: dualdensity – 1u
Decoder:triple density – 1u (horizontal mount); or 10-unit density in 3u (verticalmount)
Packaging Content
MaevexEncoder unit:
CAT5EEthernet cable, RJ45 male to male, 6’/182.88cm
DVI adapter- DVI-D male to HDMI female
3.5mm analogstereo audio cable, male to male, 6’/182.88cm
Power supplyand power cords (see “Power supply”)
Quick setupguide and release notes (if applicable)
MaevexDecoder unit:
Power supplyand power cords (see “Power supply”)
Quick setupguide and release notes (if applicable)
