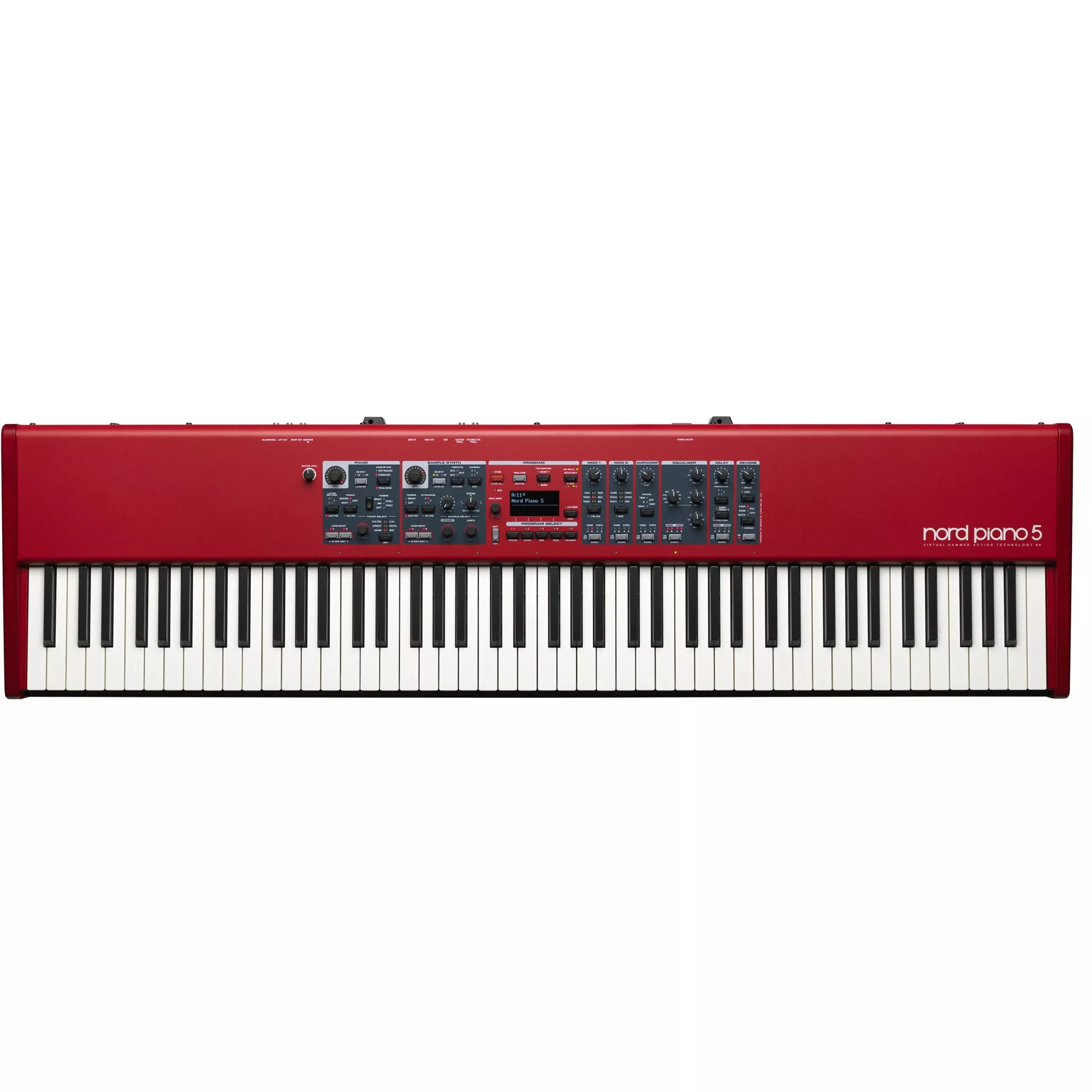

Nord Piano 5 88 Note Triple Sensor Stage Keyboard

Nord Piano 5 88 Note Triple Sensor Stage Keyboard

The Piano and Sample Synth sections of the Nord Piano 5 each contain two independent Layers. The two Pianos and two Sample Synths can be used simultaneously in a variety of split or Layer configurations. Combined with the versatile effects routing, a wide range of combinations can be achieved – from classic ensemble settings to rich soundscapes. The LED equipped Level controls allow for quick and precise balancing of all Layer volume levels. A Volume Pedal and/or Sustain Pedal can be assigned to each Layer. The Nord Piano 5 has dedicated dials and buttons for full hands-on control during a live performance. Transposing, setting up a split point or creating a layered sound can be accomplished instantly.

Key Features

• 88-note Triple Sensor Keybed: weighted action with fast and precise key response
• Virtual Hammer Action Technology: realistic hammer movement for authentic piano feel
• Advanced Layering: layer up to 2 Piano and 2 Sample Synth sounds
• Advanced Keyboard Split: flexible splits with optional crossfade transitions
• Seamless Transitions: switch sounds smoothly without note cutoff
• OLED Display: clear visual interface for sound selection and control
• Dual Piano Layers: two independent piano engines for layering or splits
• Expanded Piano Library Memory: increased capacity for Nord Piano Library sounds
• 120-Voice Polyphony: handles complex passages without voice loss
• Piano Timbre Controls: tonal shaping including Dyno filter
• Selectable Touch Curves: three response settings for different playing styles
• Dynamic Pedal Noise: realistic pedal mechanical sound simulation
• String Resonance: reproduces natural sympathetic string vibrations
• Soft Release: natural and smooth note release behavior
• Dual Sample Synth Layers: two independent sample synth engines
• Expanded Sample Library Memory: increased storage for Nord Sample Library
• Soft and Bright Filters: quick tone brightness adjustment
• Unison Mode: stacks voices for thicker ensemble sound
• Tru-Vibrato: realistic vibrato effect based on instrument modeling
• Round Robin Sampling: varied playback for more natural repetition
• Monophonic Legato Support: smooth transitions between notes
• Envelope and Dynamic Controls: adjust attack, decay, release, and dynamics
• Stereo Effects: high-quality effects modeled after classic stomp boxes
• Reverb with Tone Modes: ambience control with Chorale and Bright/Dark options
• Delay with Ping Pong Mode: stereo delay with spatial movement effect

Technical Specifications

• GLOBAL
  • OLED Display
  • Seamless Transitions
  • Split Point Crossfades
  • 16 banks with 25 programs – 400 locations
  • Organize functionality for programs
  • Live Mode – 5 Live programs
  • Global Transpose
    • +/- 6 semitones
  • Program Transpose
    • +/- 6 semitones
  • Fine-tune
    • +/- 50 Cents
  • Kbd Touch
    • 3 velocity response curves
    • Triple Sensor keybed with Virtual Hammer Action Technology
    • Split functionality with selectable split point and LED indication
    • Layer functionality
    • Mono Output option
    • Dynamic Sustain Pedal action with the included Nord Triple Pedal
    • USB-MIDI
    • Free OS updates
• PIANO SECTION
  • 2 independent Layers
  • 6 types – Grand, Upright, Electric Pianos, Digital, Layer, Clavinet and Harpsichord.
  • Each category can contain up to 20 different models.
  • 120 Voice Polyphony (stereo/mono pianos)
  • Piano Timbre feature with Soft, Mid and Bright settings for acoustic pianos. Dyno 1 and 2 options for electric pianos
  • Layer Detune with 3 amounts
  • Advanced String Resonance (Generation 2) – adjustable amount
  • Selectable Soft Release for Grand, Upright, Electric Pianos and Harpsichord
  • Selectable Pedal Noise for Grand, Upright and Electric Pianos 1 – adjustable amount
  • Octave transpose
    • -1/+1 (-6/+6 in Split mode, depending on Split position)
• SAMPLE SYNTH SECTION
  • 40+ Voice Polyphony
  • Amp envelope with Attack and Decay/Release
  • Bright and Soft Timbre options
  • Adjustable Vibrato with 3 Delay options
  • Unison feature with 3 amounts
  • Selectable velocity sensitive low pass filter and dynamic range
  • Octave transpose
    • -1/+1 (-6/+6 in Split mode, depending on Split position)
  • Volume controllable with Volume Pedal (not included)
• DIMENSIONS
  • Nord Piano 5 73: 73: 1070mm (42,1”), 342mm (13.4”) 120mm (4.7”)
  • Nord Piano 5 88: 1287 mm (50.7”), 342mm (13.4”), 120mm (4.7”)
  • Nord Triple Pedal: 264 mm (10.4”), 224 mm (8.8”), 70 mm (2.8”)
• WEIGHT
  • Nord Piano 5 88: 18,5 kg (40.1 lbs)
  • Nord Piano 5 73: 15,5 kg (34.1 lbs)
  • Pedal: 2 kg (4.4 lbs)

Installation / Use Cases

• Live performance using an 88-note stage piano keyboard for professional musicians
• Studio recording workflows requiring high-quality digital piano sound and control
• Music production setups using a stage keyboard with advanced key action
• Practice and rehearsal environments needing full-size weighted keyboard performance

Package Contents

• Nord Piano 5 88-Note Stage Keyboard
