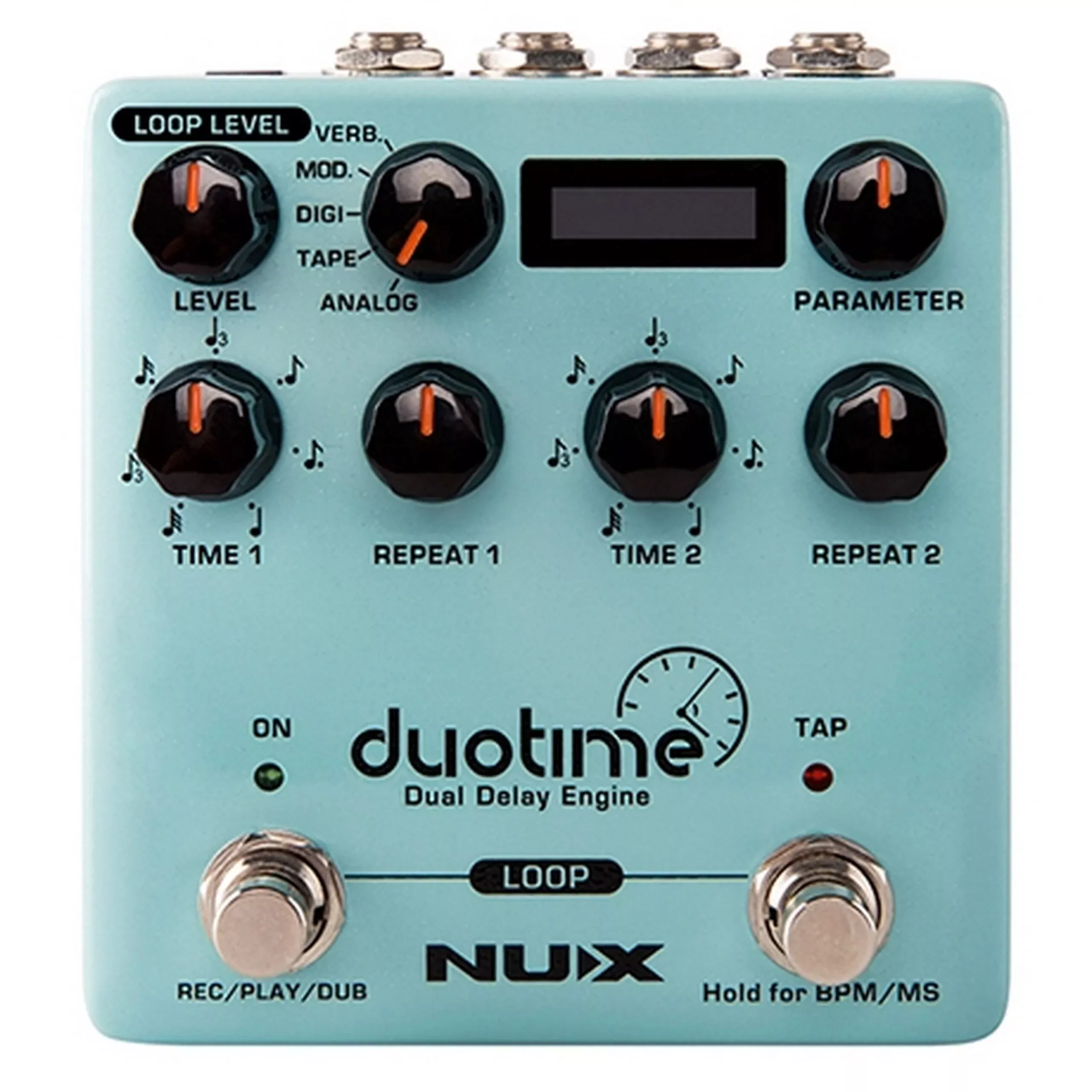

Nux DUOTIME Dual Delay Engine Stereo Delay Pedal
Duotime is areal stereo delay pedal with independent time / sub-division & repeatknobs. In the 80’s, all of the professional musicians used rack-mount effectsto run stereo delay. It was the golden era of legendary engineering likeLexicon Delta, TC 2290, Eventide H3000, and more. When we talked to”working musicians” we found that they were looking for a greatstereo delay with a compact size and ultra-simple controls. So we discussed theabsolutely essential requirements and developed the duotime Dual Delay Engine.It’s ultra-musical, and easy to operate. So, let’s dive-in and experience themost versatile delay pedal ever:
Duotimeoffers analog delay, tape echo, digital delay, modulation delay, and verbdelay.
LEVEL Knob: Controls the delay mixlevel.When using ENTER LOOP mode, the LEVEL knob will become your LOOP LEVEL tocontrol Phrase Loop volume.
Delay Type Selector: This is a 5-way rotary switch. You can choosethe delay type as ANALOG, TAPE, DIGI, MOD., and VERB.
PARAMETER: For Analog Delay, PARAMETER controlsModulation Depth. Increase to get wider modulated sound.
-For TapeEcho, PARAMETER controls signal saturation. Increase to get more saturated anddistorted sound.
-For DigiDelay, PARAMETER controls signal hardness. Increase to get a more compressedand brighter sound.
-For ModDelay, PARAMETER controls Modulation Depth. Increase to get a wider modulatedsound.
-For VerbDelay, PARAMETER controls Reverb and Shimmer mix level. Increase to get moredepth and a 3 dimensional feeling.
TIME 1: Controls delay1’s delaytime. When in Tap Tempo, it becomes a sub-division according to currentparameter.
REPEAT 1: Controls delay1’s number of repeats.
TIME 2: Controls delay2’s delay time. When in TapTempo, it becomes a sub-division according to current parameter.
REPEAT 2: Controls delay2’s number ofrepeats.
TAP Footswitch: Tap this foot switch to adjust the speed anddelay sub-division. You can set the target sub-division by TIME 1 and TIME 2knobs, then TAP this foot switch to adjust the speed, the DELAY 1 and DELAY 2will change the delay time according to the current sub-division notesignature. Hold this foot switch for 2 seconds, to switch current delay timebetween MS or BPM.
OLED Display: Shows current Delay type, and delay time inMS/BPM.
LOOP Mode: Press ON and TAP foot switch simultaneously,to enter / quit PHRASE LOOP mode. In LOOP mode, press ON foot switch toactivate REC/PLAY/DUB and hold to UNDO/REDO as a normal looper pedal. OLEDdisplay shows your phrase loop status. LEVEL knob becomes LOOP LEVEL to adjustphrase loop volume. (Pedal will remember the current delay mix level when youenter LOOP mode.) All other knobs work in normal mode independently.
IN 1 (MONO): If you only connect withIN 1, then IN 1 signal will run DELAY 1 related to TIME 1 and REPEAT 1 knobsfor OUT 1. Pedal will copy IN 1 signal to run DELAY 2 related to TIME 2 andREPEAT 2 knobs for OUT 2.
If youconnect using IN 1 and IN 2, then IN 1 and IN 2 will run DELAY 1 for OUT 1 andDELAY 2 for OUT 2 separately.
IN 2: If you only connect with IN 2,then IN 2 signal will run DELAY 2 related to TIME 2 and REPEAT 2 knobs for OUT2. Pedal will copy IN 2 signal to run DELAY 1 related to TIME 1 and REPEAT 1knobs for OUT 1.
If youconnect with IN 1 and IN 2, then IN 1 and IN 2 will run DELAY 1 for OUT 1 andDELAY 2 for OUT 2 separately.
OUT 1 (MONO): OUT 1 signal is relatedto DELAY 1.
OUT 2: OUT 2 signal is related to DELAY2.
USB Port: You can update firmware usingthe USB port. Please check our product page “Support” and followinstructions.
DC Jack: Use ONLY: 9V Negative Tippower with 300ma.
Key Features
- Up to 1800msstereo delay time by Tap Tempo
- 5 Delaytypes: Analog Delay / Tape Echo / Digi Delay / Mod Delay / Verb Delay
- True stereodelay engine with independent controls in a compact size
- Realisticinfinite pitch-shift feedback in Analog and Tape modes
- Sub-divisiontime signature with Tap Tempo foot switch
- 40 secondsstereo phrase loop with OLED status display
- Optionaldelay time display (MS/BPM)
- Musical timesync modulation rate in Analog and Modulation delay
- Pioneer 3dimensional feeling Verb. Delay
TechnicalSpecifications
Sampling rate
48kHz
A/D Converter
32Bit
Signal Processing
32Bit
9 Frequency Response
20Hz~20kHz -+/-1dB
Maximum input level
10dBu/2.8Vrms
Input Impedance
5M OHM
System Latency
1ms
Maximum output level
10dBu/2.8Vrms
Output Impedance
1k OHM
Dynamic Range
102dBu
THD+N Rato
0.02%/-70dB(A-Weighting)@input1Vrms,1kHz
Power
9VDC(Negativetip,Optional ACD-006A adapter)
Current Draw
less than150mA
Dimensions
105(L)X115(W)X58(H)mm
Weight
440g
