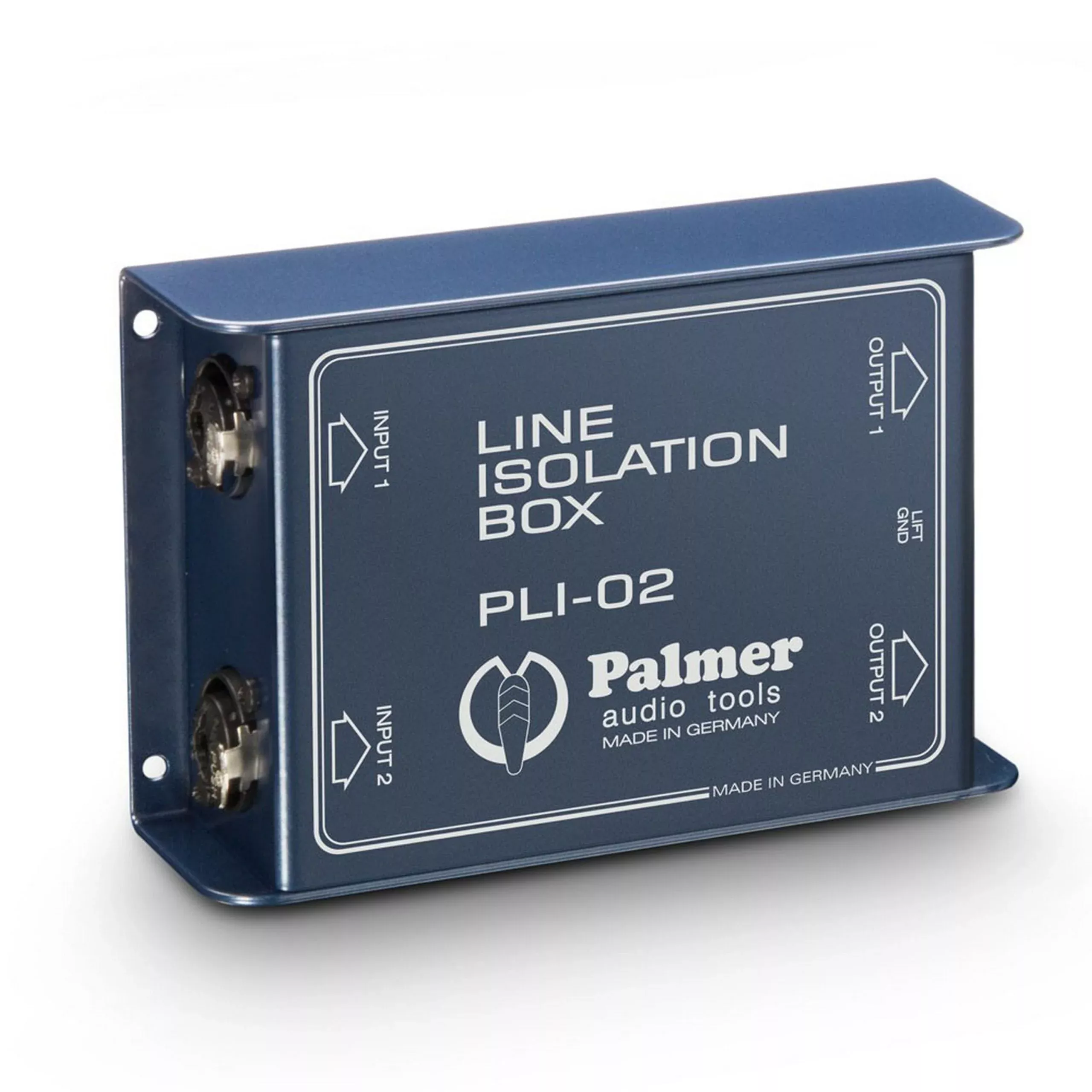

Palmer LI 02 Line Isolation Box, 2 Channel
Two-channel isolation transformer (line isolator). Neutrikcombination socket input (XLR & jack socket) and XLR output. The PLI02 alsohas a ground-lift switch. Especially suitable for eliminating ground loops thatcause hum. Conversion from unbalanced to balanced is possible. 600 ohm versioncan handle levels up to +20 dBu. Professional dual channel line isolating unitfor stage and studio use. A unique Neutrik input connector accepts both maleXLR and jack plugs. The PLI-02 easily converts unbalanced outputs into balancedones. It may also be used to transformer balance electronically balanced inputsand outputs.
Technical Specifications
Product type
Line Isolators
Channels
2
Inputs
2
Input connectors
6.3 mm jack , XLR
Input type
balanced/unbalanced (depending on TS/TRS connection)
Input impedance
0.6 k Ohm(s)
Max. input level
+ 20 dBu
Outputs
2
Output connectors
XLR
Output type
balanced/unbalanced (depending on TS/TRS connection)
Output impedance
600 Ohm(s)
Max. output level
+ 20 dBu
Transformer balanced
Yes
Ratio
1:1
Frequency response
20 – 20.000 Hz
Controls
ground lift
Cabinet material
Die-cast aluminum
Cabinet surface
Powder coated
Width
135 mm
Depth
95 mm
Height
35 mm
Weight
0,53 kg
