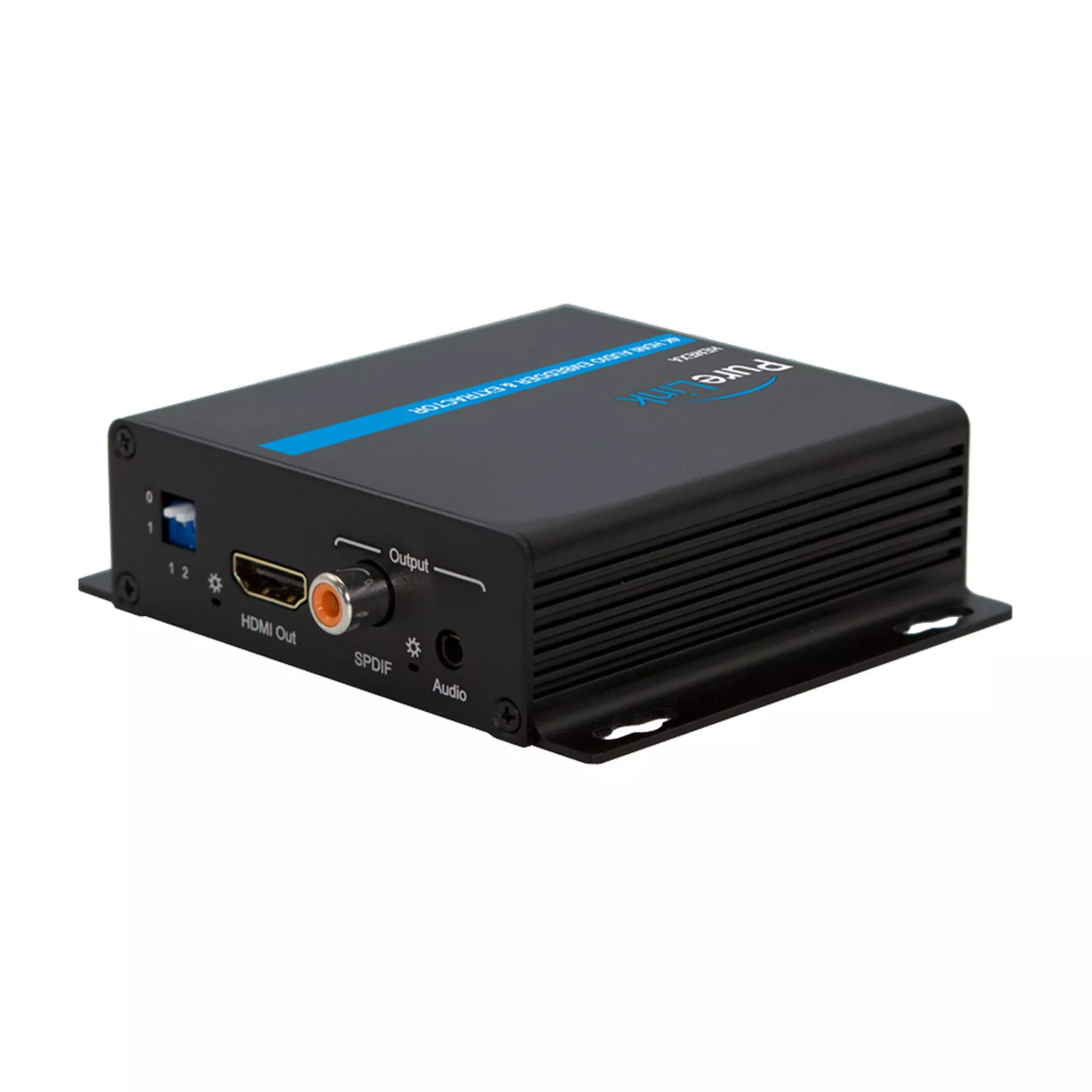

PureLink HEMEXA 4K HDMI Audio Embedder and Extractor
The HEMEXA HDMI audio embedder and extractor supports up to4K 60Hz resolutions. Easily embed or extract 2 channel analog or 5.1 SPDIFaudio to or from any HDMI signal. The HEMEXA’s compact size makes it ideal fora technician’s toolbox and in applications including conferencing, live events,education, rental and staging, broadcast, house of worship, and many more.
Key Features
- Audio embedding of 5.1 SPDIF, Analog Audio 2.0 PCM
- Extract digital HDMI audio signal from HDMI input to 2channel analog stereo output or 5.1 channel audio output
- Supports uncompressed PCM, Dolby, DTS audio
- Supports resolution up to 4K 60Hz (18Gbps)
- HDCP 2.2/1.4
- Supports CEC
Technical Specifications
Hardware
Input Signal Type(s)
(1) HDMI Type A
(1) Analog Stereo Audio
Output Signal Type(s)
(1) HDMI Type A
(1) Analog Stereo Audio
(1) Digital Audio
Performance
Compliance
HDCP 2.2/1.4
Video input format
0.5-1.0 Volts P-P
Supported AudioFormats
PCM, DTS-HD Master Audio, Dolby true-HD, etc.
Power Consumption
1.5 watts (Maximum)
Input DDC Signal
5 volts p-p (TTL)
Operating Temperature
-5C to 40C (23F to 104F)
Operating Humidity
5 to 90% RH (No Condensation)
Support Video format
4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video
Support Video ColorFormat
xv-YCC/deep color 36bit
Data Rate
18 Gbps
Enclosure
Product Dimensions
104.4mm x 89mm x 28.3mm
Product weight
155g
