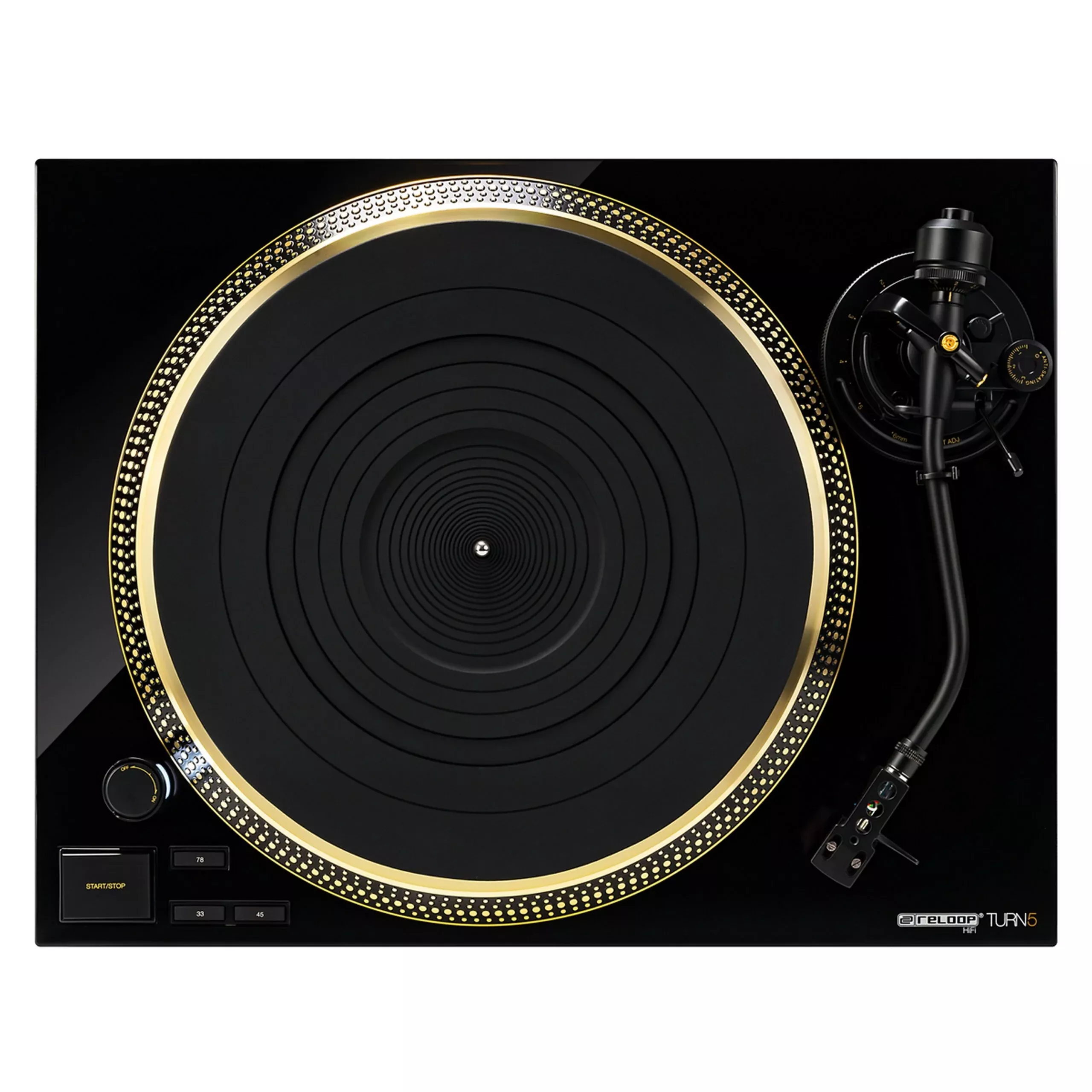

Reloop TURN-5 Direct Drive Hi-Fi Turntable System
Direct Drive
HiFi Turntable System
With TURN5Reloop HiFi is launching a quartz-controlled, direct-drive turntable that meetsthe highest sound requirements. Using our expertise we have developed a newHiFi turntable, which with its technical sophistication is the best in itsclass.
Powerful DC motor & low-resonancedie-cast platter
Thebrushless, direct-drive DC motor ensures a powerful drive at a very consistentrotation and the TURN5 has been produced using die-cast precision manufacturingtechniques. A dampening rubber base on the turntable system eliminates anyunwanted resonance and the accompanying 5 mm rubber coating also protects againstvibrations so that nothing stands in the way of the exceptional soundreproduction.
High-quality control elements &connections
The threemotor speeds can be selected with convenient controls on the top to 33 1/3, 45or 78 rpm. This means the TURN5 can also play back old shellac records with acorresponding mono-system (not included). Next to this is the large start/stopknob. The universal locking mechanism (SME) on the tonearm allows for a quickand easy headshell exchange. Also, with the supplied counterweight a wholerange of cartridges can be used as this also supports heavier pick-ups. On therear panel of the TURN5 is a gold-plated phono output pair (RCA) with aseparate earth connection to prevent any potential interference. The terminalfor all cable connections has been recessed to protect them as much aspossible. For a simple exchange, the power cable and the RCA cable can beremoved.
Static balanced S-tone arm & Hi-techOrtofon cartridge system
The TURN5uses a statically balanced S-shape tone arm. This is supplied, along with thehydraulic lift and an anti-skating setting, with a convenient tone arm heightadjustment with locking VTA. This guarantees optimum performance of the cartridgeand an accurate reproduction of the recording medium. The supplied Ortofon 2MRed cartridge is already pre-mounted on a headshell and stands out thanks toits elliptical cut with phenomenal sound quality.
Elegant design in a particularly heavy-dutyconstruction
The housingis built on a heavy-duty metal construction with shock-absorbing feet in orderto isolate unwanted vibrations as much as possible and reduce ambient noise.The combination of several materials provides additional stiffness to the housing.With its deep black piano finish, visually the TURN5 is elegant and timeless.The gold-plated turntable hovers harmoniously above the cover plate and focusesthe view on the important thing – the record.
Key Features
- Quartz-ControlledHiFi turntable with high torque
- BrushlessDirect Drive DC Motor
- Precisionmachined Die-Cast Aluminium Turntable Platter for a perfectly balanced rotation
- DeadeningRubber covering rear platter surface & special 5mm rubber mat for optimizedresonance control and damping
- Static-balancedS shaped tonearm with VTA adjustment
- Adjustableanti-skating dial for improved cartridge tracking
- Pre-installedOrtofon 2M Red cartridge
- Integratedmotor control selector for conveniently selecting three different speeds (33,45 and 78 RPM)
- UniversalHeadshell Connector provides added flexibility
- High QualityPhono outputs (with separate grounding connection)
- Gold-plated,corrosion resistant audio outputs (power and RCA cables detachable)
- Sunk-interminal cavity for protected connection
- Especiallyheavy metal construction, rigid cabinet design and Shock-resistant feet foreffective decoupling
- Suppliedcounterweight supports a wide variety of cartridges
- Elegantdesign with deep black Piano Finish and a fully gold anodised Platter
- IncludedAccessories: Turntable Platter, Dust Cover, 2x Dustcover hinges, BalanceCounter Weight, PHONO RCA Cable with earth lead, AC power supply cord, RubberMat, Instruction Manual, Ortofon 2M Red cartridge & headshell
TechnicalSpecifications
Turntable Section
Type: DirectDrive Manual Turntable System
Drive:Quartz driven upper-torque direct drive
Motor: 16pole, 3 phase, brushless DC motor
TurntableSpeeds: 3 speeds, fully manual (33 1/3, 45, 78 rpm)
StartingTorque: 4500 g/cm
Start-uptime / rpm change: less than 0.2 sec.
Wow andflutter: 0.01% WRMS
S/N Ratio:More than 55 dB (DIN-B)
Brakesystem: electronic brake
Recordweight: recommended 800g
Turntable Platter
Material:aluminium die-cast
Diameter:332 mm
Weight:About 1.8 kg (including rubber mat)
Tonearm Section
Type:Universal Static Balanced S-Shaped
EffectiveLength: 230 mm
Overhang: 15mm
TrackingError Angle: Less than 3 degree
OffsetAngle: 22
StylusPressure: 0 – 4 g
AdjustableTonearm Base (VTA): 0-6 mm
ApplicableCartridge Weight: 3.5~8.5 g (including headshell is 13~18 g)
Anti-SkatingRange: 0 – 3 g
Effectivetonearm mass: 20 g (incl. headshell)
Terminals
1x PHONO Out(gold-plated), 1x GND Earth Terminal
General
Powersupply: AC 115/230 V, 60/50 Hz (EU/US), AC 100 V, 50/60 Hz (JP)
PowerConsumption: 9 W
Dimensions:458 (W) x 368.3 (D) x 162.4 (H) mm
Weight:approx. 12.8 kg
Included Accessories
TurntablePlatter, Dust Cover, 2x Dustcover hinges, Balance Counter Weight, PHONO RCACable with earth lead, power cord, Rubber Mat, Instruction Manual, Ortofon 2MRed cartridge & headshell
