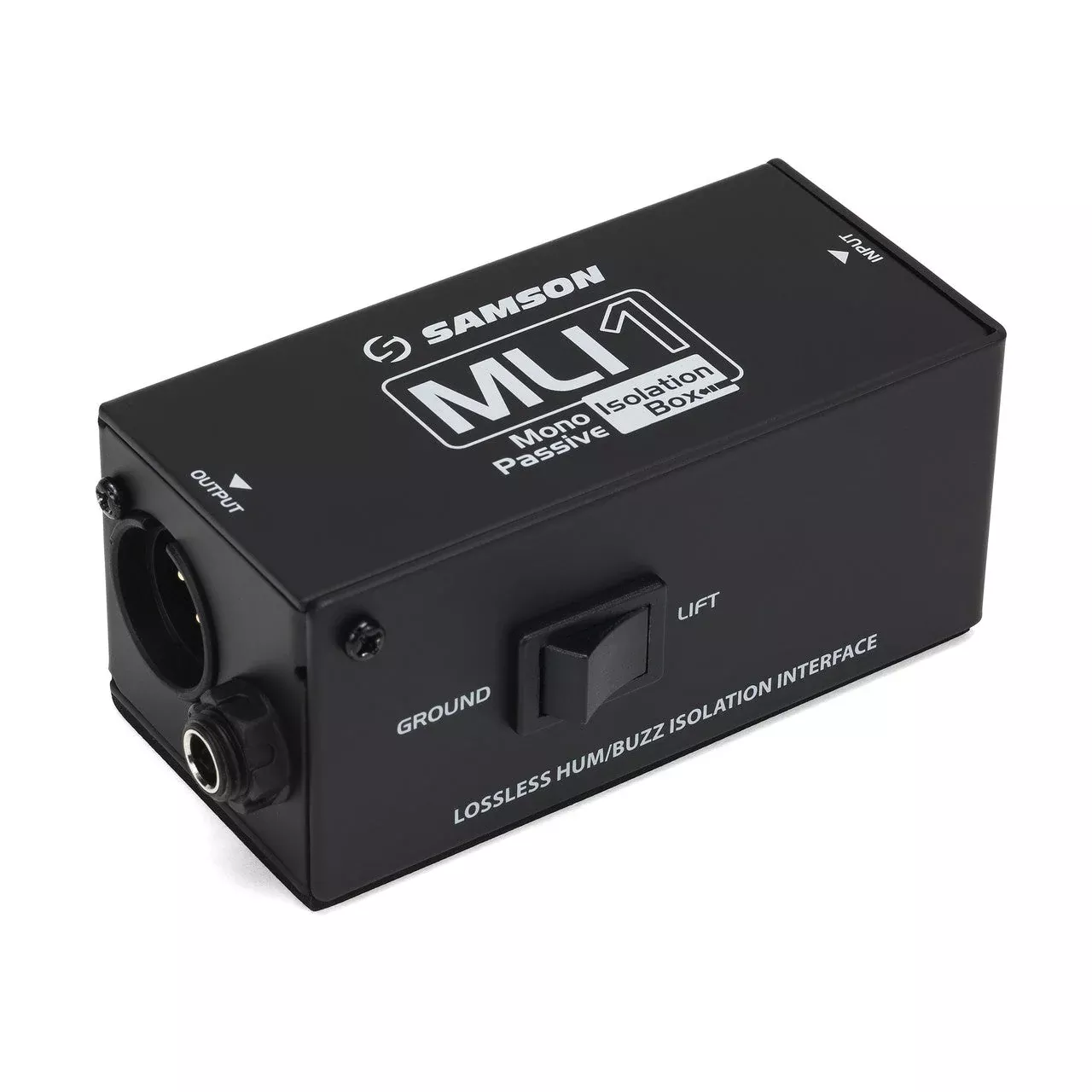

Samson MLI1 Mono Passive Isolation Box
The SamsonMLI1 is a line level passive isolation box designed to remove hum and buzzcaused by ground loops, as well as to convert unbalanced signals to balancedsignals for long cable runs. Combining premium sound circuitry with durable,roadworthy construction, the MLI1 provides high-quality signal connectionsolutions for live, broadcast and studio applications.
Key Features
- Mono lineisolation box eliminates hum and buzz caused by ground loops
- Samson STLtransformer isolates input and output signals
- Flexibleconnectivity with 1/4″ and XLR input and output connections
- Ruler flatfrequency response from 10Hz-35kHz
- All-metal,impact resistant design
TechnicalSpecifications
Frequency Response
10Hz-35kHz(-0.2dB typical), up to 75kHz (-1dB)
Dynamic Range
>140dB
Maximum Input
+15dBu @41Hz for <1% THD+N
Gain
+0.2dB
Rejection
50/60Hz126dB typical
Equivalent Input Noise
-115dBu
Intermodulation Distortion
0.003%
Total Harmonic Distortion
0.0006%
Input Impedance
7.7k
Output Impedance
600 nominal
Ground Lift
Disconnectsground from input to output connectors. Case is always grounded to outputs.
Connectors
Input:XLR-1/4″ combo, Output: XLR + 1/4″ TRS
Chassis Construction
Powdercoated, 14-gauge steel
Weight
0.7lb(0.32kg)
Dimensions
4.25″(110mm) x 2.25″ (54mm) x 1.75″ (46mm)
