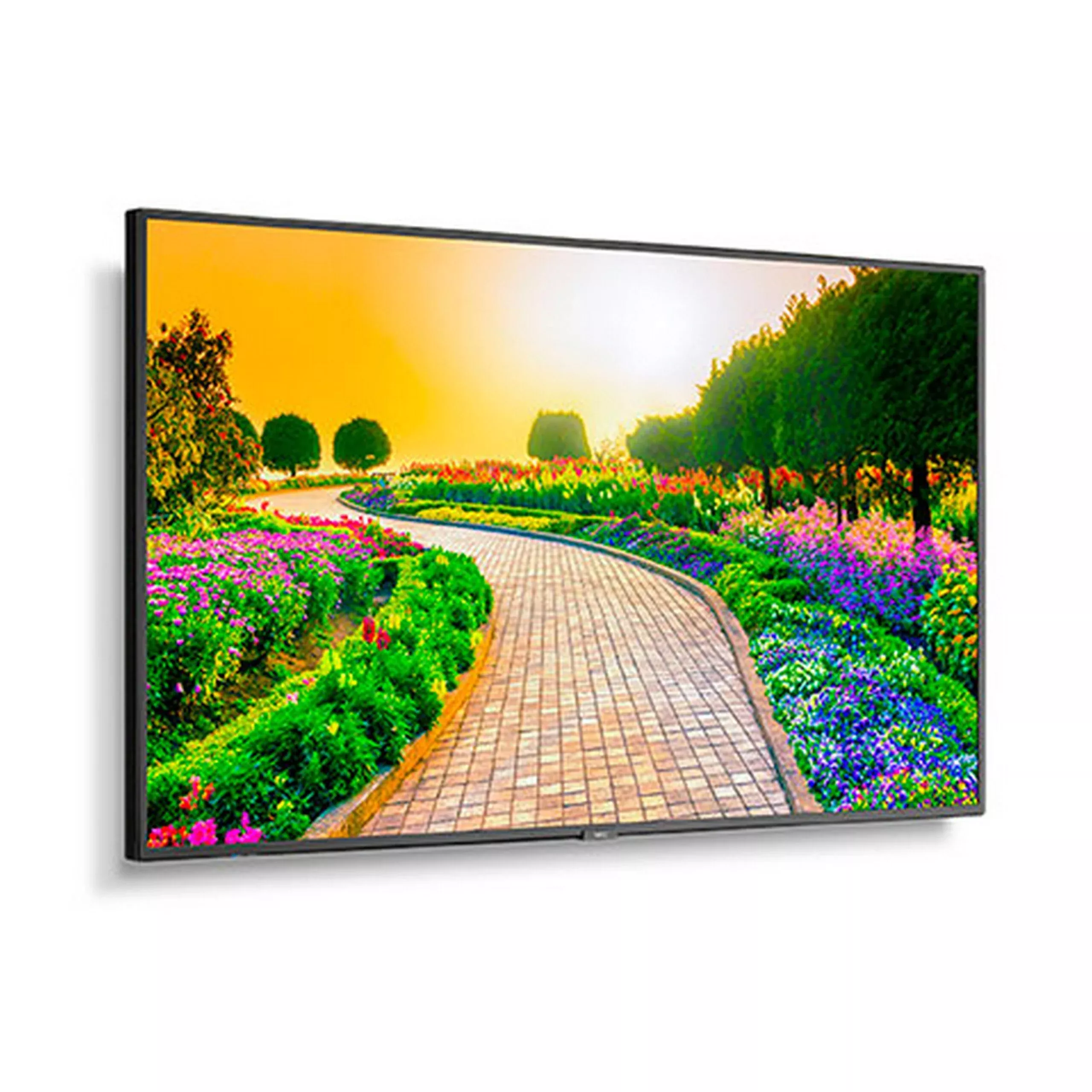

Sharp M431 43 Inch Ultra High Definition Professional Display

Sharp M431 43 Inch Ultra High Definition Professional Display

Create pixel-perfect imagery with the high-end panel qualityof the fully professional NEC M Series large format displays. By focusing oncustomer needs while also offering professional reliability, the M seriesdisplays give customers a digital signage display lineup without all the costs.The M series can support both landscape and portrait orientations while alsoallowing the modularity possibilities to customize their needs dependent ontheir application and use. The new series contain a full metal mechanicalchassis, allowing for a more robust design necessary for commercialapplications while maintaining the attractive aesthetics that allow the focusof onlookers to be on what matters – the message. Simple and targetedconnectivity options allow customers to have the up-to-date options that theyneed while not having to overpay for excess and unused interfaces. The NEC Mseries boasts 500 cd/m brightness which is ideal for a majority of digitalsignage applications in corporate, higher education, restaurant, retail andgrocery store environments when the focus should be on the message, not thebudget.

Key Features

• 4K UHD native resolution allows for crystal clear imageryand messaging that become more vivid and lifelike than ever before!
• Landscape and Portrait orientation allows for flexibility ofinstallation dependent on your needs
• Accepts Intel Smart Display Module Small or Large allowingfor sleek all-in-one intelligence and interoperability in a small form factorsetting by accepting Intel processor-based products and other peripheralsdirectly into the displays
• Raspberry Pi Compute Module 4 allows for future proofexpansion and NEC Mediaplayer support (Q2 2021)
• Bidirectional and Full External Control allows for easyintegration into control systems via LAN or RS232C
• 500 cd/m2 brightness and HDR compatibility will capture theattention of audience in almost any situation
• Integrated Media Player allows for audio, video or imageplayback via USB
• Failover Capabilities with full Input Detect functionalityallow peace of mind as the display will automatically switch to a secondary ortertiary source if the primary source fails
• Integrated Ambient Light Sensor allows the display to automaticallyadjust its luminance based on external brightness conditions
• Energy Star 8.0 Certified Product

Technical Specifications

Display
Panel Technology
IPS
Viewable Image Size
43”
Aspect Ratio
16:9
Native Resolution
3840×2160
Supported Resolutions
DisplayPort: V1.2 (HDCP 1.3/2.2) VGA60, SVGA60, XGA60,SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50 Hz/60 Hz,576p@50 Hz, 480p@60 Hz, 3840×2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz), 4096×2160(24 Hz/25 Hz/30 Hz/50 Hz/60 Hz) HDMI (HDCP 1.4/2.2) VGA60, SVGA60, XGA60,WXGA60, SXGA60, UXGA60, WUXGA60, 1920×1080 (60 Hz), 1080p, 1080i, 720p@50 Hz/60Hz, 576p@50 Hz, 480p@60 Hz, 576i@50 Hz, 480i@60 Hz, 3840×2160 (24 Hz/25 Hz/30Hz/50 Hz (MODE2)/60 Hz (MODE2)), 4096×2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60Hz (MODE2))
Pixel Pitch
0.25 mm
Pixels Per Inch
102 @ native resolution
Backlight Type
LED Edge-lit
Brightness (typical)
500 cd/m2
Contrast Ratio(typical)
8,000:1 (Out of the box conditions, local dimming ON)
Viewing Angle(typical)
178 Vert., 178 Hor. (89U/89D/89L/89R) @ CR>10
Response Time (Grayto Gray)
8 ms
Refresh Rate
60Hz
Active Screen Area
37.1 x 20.8 in. / 941.2 x 529.4mm
Orientation
Landscape/Portrait
Dimming Capability
Local Dimming Capable
Displayable Colors
More than 1.08 billion (8-bit+FRC)
Color Temperature(Max) (K)
10000K
Color Temperature(Min) (K)
2600K
Gamma (Typical)
Native, 2.2, 2.4, S-Gamma, DICOM, Programmable1,Programmable2, Programmable3
Synchronization Range
Horizontal(Analog/Digital)
Digital: 26.0 – 135.0kHz
Vertical Digital: 23.0- 86.0Hz
Input Signal
Video
Digital TMDS / DisplayPort
SignalCompatibility/Connectivity
PC SignalCompatibility
Yes
Macintosh SignalCompatibility
Yes
Video
Digital TMDS / DisplayPort
External Control
LAN and RS232 In – Full external control capabilities
Input Terminals
Digital
HDMI (2.0 x 2 with HDCP), DisplayPort (1.2 with HDCP)
Audio
3.5 Mini-Jack x2, DisplayPort Audio, HDMI Audio x3
External Control
RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)
Data
USB 2.0 (Media Player)
Output Terminals
Audio
3.5mm Mini-Jack
Power Consumption(typical)
On
80W
ECO Mode Standby
<0.5W
Network Standby
0.5W
Power Consumption(max)
95W (Max brightness), 175W (Brightness Max, SDM Max, VolumeMax)
Power Savings Mode
2 W
Power Requirements
1.8A @ 100V, 0.9A @ 240V
PhysicalSpecifications
Bezel Width(Left/Right, Top/Bottom)
0.43 in./0.43 in., 0.43 in./0.61 in. : 11 mm/11 mm, 11mm/15.6 mm
Dimensions (WxHxD)
Without stand
38.1 x 22.1 x 2.6 in. / 968.2 x 561 x 67.1 mm
Shipping
44.1 x 27.6 x 8.0 in. / 1120.0 x 700.0 x 203.0mm
Weight
Net Weight (withoutstand)
38.6 lbs. / 17.5 kg.
Shipping
50.7lbs. / 23.0kg
