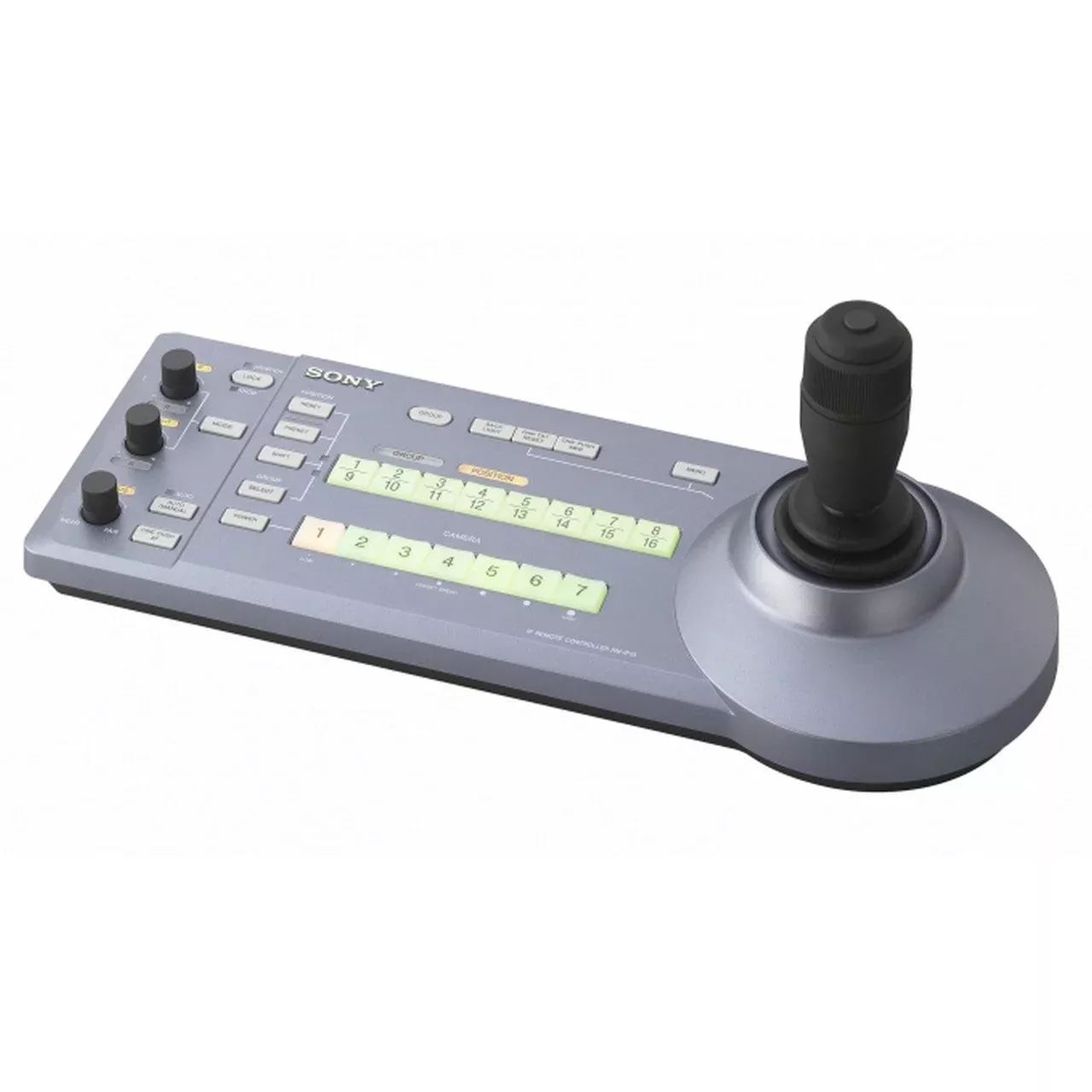

Sony RM-IP10 IP Remote Control Panel for BRC Cameras
The RM-IP10is compatible with Sony’s BRC-H900, BRC-H800, BRC-X1000, SRG-300SE, SRG300H,SRG-120DU, SRG-120DH and SRG120DS cameras when they are fitted with theBRBK-IP10 option board, and the BRC-Z700 camera when it is fitted with theBRBK-IP7Z option board. Easy and economical installation and set-up saves youtime and cost.
Key Features
- The RM-IP10remote control panel gives you control of up to 112 BRC cameras over an IPnetwork
- The RM-IP10is compatible with Sony’s BRC-H900, BRC-H800, BRC-X1000, SRG-300SE, SRG300H,SRG-120DU, SRG-120DH and
- SRG120DS cameras when they are fitted with theBRBK-IP10 option board
- Up to 5RM-IP10 control panels can be used on a single network allowing shared controland simultaneous multi-operator control of large camera systems
- The RM-IP10can also control up to 7 BRC cameras over a traditional VISCA (Video SystemControl Architecture) network
- The RM-IP10links to an IP network with via a RJ-45 connector providing very easy, low costand speedy installation
TechnicalSpecifications
Input/output connectors
Control input/output
VISCARS-232C OUT Connector : Mini DIN 8pin type
VISCA RS-422connector: 9-pin type LAN : RJ-45, 10BASE-T/100BASE-TX automatically detected
TallyIn/Contact Out: 9-pin type
Control signal format
9,600bps/38,400 bps (for RS-232C/RS-422 communication)
VISCA overIP communication
Power Connector
JEITA type 4(DC IN 12V)
Input voltage
12V DC (10.8to 13.2V DC)
Current consumption
0.3A max.(at 12V DC), 3.6W
Operating temperature
0 to 40(32F to 104F )
Storage temperature
-20 to 60(-4F to 140F )
Dimensions (W x H x D)
391.3 mm x165 mm x 145.9 mm (15inches x 6inches x 5inches)
Mass
Approx. 950g(2 lb 15 oz)
User Interface
Display
No
Speed Control
No
Zoom Seesaw Lever
No
Zoom Ring of Joystick
Yes
Zoom Control selectable
Ring ofJoystick
ASSIGN button
0
Kensington lock hole
No
Camera Control
Maximum IP Connections
112
Maximum Serial Connections
7
Control Protocol
VISCA overIP/VISCA RS-422/VISCA RS-232C switchable
max Controller qty (/sys)
5
Direct Function of Buttons/Knobs
Exposure mode selection
No
One-push white balance auto adjustment
No
One-push black balance auto adjustment
No
Toggle color bars output on/off
No
Toggle backlight compensation on/off
Yes
Toggle flicker compensation on/off
No
Display the status of iris,gain,shutterspeed and zoom position
No
R gain and B gain adjustment
Yes *1
R black and B black adjustment
Yes *1
Master black adjustment
No
Detail level display
No
Detail level adjustment
No
Knee point display
No
Knee point adjustment
No
AE level display
No
AE level adjustment
No
Iris setting display
No
Iris value adjustment
Yes *1
Gain setting display
No
Gain value adjustment
Yes *1
Shutter speed display
No
Shutter speed adjustment
Yes *1
Supplied Accessories
Supplied Accessories
OperatingInstructions (1)
AC PowerAdapter (SONY)(1)
AC powercord (1)
CD-ROM (1)
RS-422connector plug (attached to the unit) (2)
