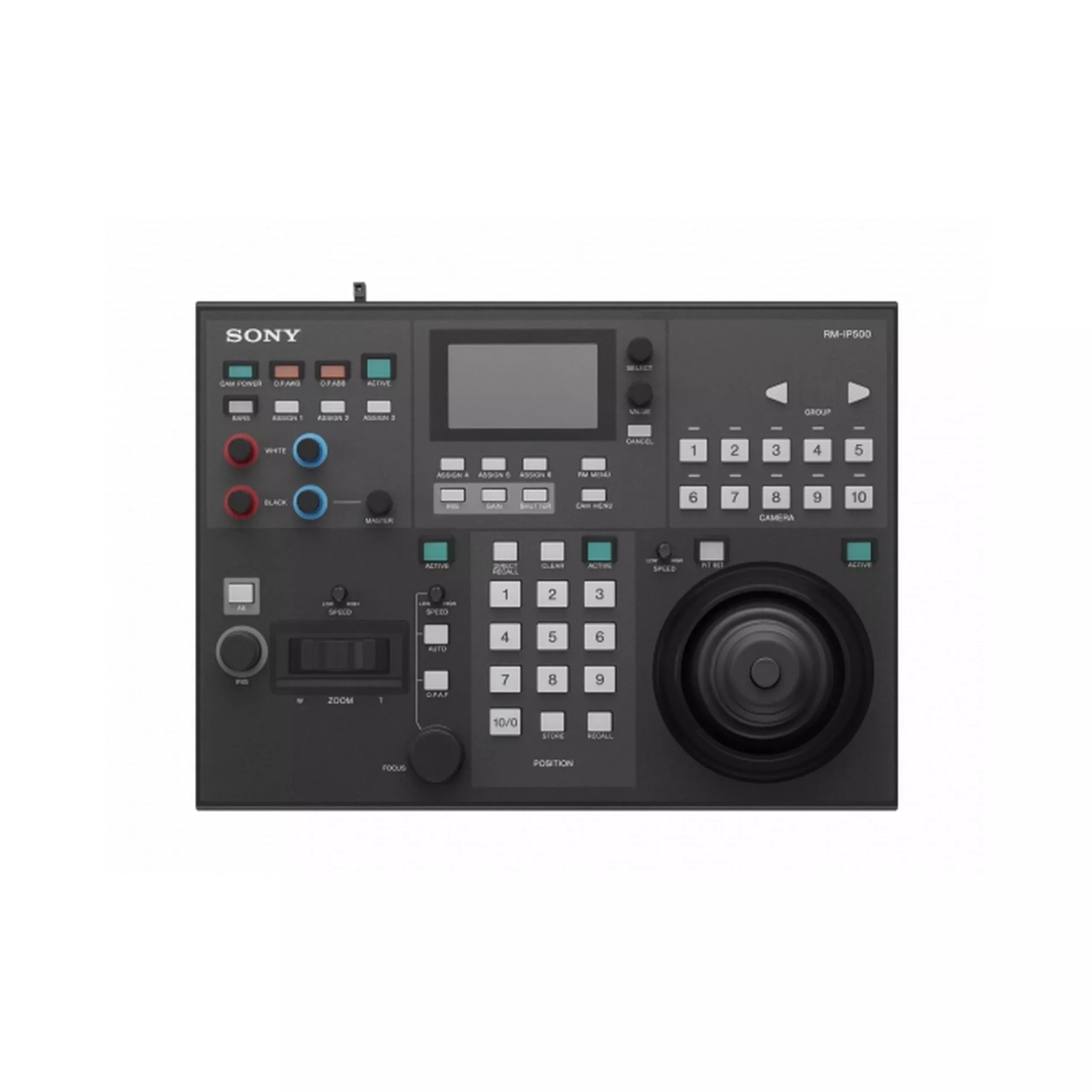

Sony RM-IP500 PTZ Camera Remote Controller
This compactremote controller features a high-quality joystick that allows effortlessone-handed pan, tilt and zoom adjustments of compatible Sony PTZ remotecameras. Zoom can also be controlled via the joystick or a supplementary seesawlever; dedicated knobs and control buttons simplify direct access tofrequently-needed camera functions.
The RM-IP500simplifies the building of cost-effective multi-camera content creation systemswith a wide range of applications – from live events to conference halls,broadcast studios, education institutes and houses of worship.
PTZ speedcan be adjusted from slow to fast for more polished, professional-lookingresults. Up to 100* combinations of camera angles and settings can be storedas presets. Trace Memory* allows a sequence of camera moves to be stored andrecalled whenever required.
Up to 100compatible Sony BRC or SRG Series PTZ remote cameras can be controlled over astandard IP network. Set-up’s simple: the controller automatically assigns IPaddresses to connected Sony PTZ cameras on the network, also assigning a cameranumber to each.
Fullcompatibility is provided with these Sony PTZ remote camera models: BRC-X400*3,SRG-X400 *3, SRG-X120*3 , BRC-X401*2,*3 , SRG-201M2*2,*3, SRG-HD1M2*2,*3 ,BRC-X1000, BRC-H900, BRC-H800, BRC-H780*2, SRG-360SHE, SRG-280SHE*2, SRG-300SE,SRG-300H, SRG-301H*2, SRG-120DH, SRG-120DS, SRG-120DU, SRG-121DH*2, SRG-HD1*2.
The RM-IP500is an ideal partner for the Sony MCX-500 Multi-Camera Live Producer, creating acomplete IP streaming and SD recording solution for a wide range of contentproduction applications.
TheRM-IP500/1 is a US/Canada model which is bundled with the AC-UES1230MT AC powersupply and cord. In all other regions the AC power supply and cord are soldseparately.
*1 Dependson camera specification. Version up might be required.
*2 Chinamodels.
*3 Requiresfirmware V2.10
High-quality control of PTZ functions
It’s easy toachieve professional looking productions, with joystick adjustment of pan andtilt, plus zoom control either via joystick or a separate seesaw lever.Adjustable speed control of PTZ allows smooth, acurate camera movements.
Control up to 100 BRC or SRG cameras via IP
The remotecontroller allows control of pan, tilt, zoom and other functions of up to 100Sony BRC or SRG Series PTZ cameras over an IP network.
Simple set-up
Systemset-up is quick and simple, with automatic IP address assignment of connectedcameras and auto assignment of camera numbers. To change the group number,camera number, and IP address assigned to a camera or clear the camera registrationauto assigned IP addresses manually from RM-IP500 without using PC will be alsosupported from Version 2.0.
Trace Memory *
A sequenceof camera moves can be stored for instant recall whenever required. Simplestore trace memory function without using Camera Menu will be also availablefrom Version 2.0 for BRC-X1000/BRC-H800 Version 2.0.
Store and recall camera presets
Up to 100**presets (camera angles and settings) can be stored recalled instantly via thenumeric keypad, saving time in multiple camera set-ups.
Up to 5 controllers can operate on a singlenetwork
Up to 5RM-IP500 control panels can be used on a single network, allowing sharedcontrol and simultaneous multi-operator control of large camera systems. Incase both RM-IP500 and RM-IP10 are used on a single network, total number ofunits of RM-IP500 and RM-IP10 available to be controlled is up to 5.
Tally indicator
IncludesNormal Tally/On-Air Tally/Contact Modes.
Adjust camera paint functions
Colourrelated settings – including black levels, white balance, flicker cancel,detail level, knee point, auto exposure level, iris, gain and shutter speed -can be adjusted directly without needing to use the camera menus.
Additional ability to use VISCA control
The RM-IP500can also control up to seven*** compatible BRC or SRG Series cameras over aRS-422
Selectable ASSIGN items
ASSIGN itemis selectable from version 2.0, and additional functions can be assigned toASSIGN buttons. In addition to backlight/flicker/status display/detaillevel/knee point/AE level, clear image zoom/Tele Convertor/mode switch ofTrace-Preset (mode1/mode2) /ND filter/Picture Profile settings can be assigned.The available function depends on camera specification.
Notes
* Depends oncamera specification. Version up might be required.
** Themaximum preset number depends on camera specification.
*** WithSRG-360SHE, one camera can be controlled.
TechnicalSpecifications
Control input/output
VISCA RS-422OUT connector: RJ-45 x 1
LAN : RJ-45x 1, 10BASE-T/100BASE-TX automatically detected
GPI I/O (TallyIn/Contact Out): D-Sub 15-pin (female)
Control signal format
9,600bps/38,400 bps (for RS-422 communication)
VISCA over IP communication
Power Connector
JEITA type 4(DC IN 12V)
Input voltage
12V DC (10.8to 13.2V DC)
Current consumption
0.6A max. (Alllamps lit), 7.2W (at 12V DC) / 0.2A typ.(2.4W)
Operating temperature
0-deg C to40 -deg C (32-deg F to 104-deg F )
Storage temperature
-20-deg C to60 -deg C (-4-deg F to 140-deg F )
Dimensions (W x H x D)
306 mm x159.3 mm x 224.1 mm
(12 1/8 x 63/8 inches x 8 7/8 inches) (excluding protrusions)
Mass
Approx.2,400g (5 lb 4.7 oz)
Display
Yes
Speed Control
Yes 3 dials (PT,Zoom and Focus separately)
Zoom Seesaw Lever
Yes
Zoom Ring of Joystick
Yes
Zoom Control selectable
Seesaw Leveror Ring of Joystick
ASSIGN button
6
Kensington lock hole
Yes
Maximum IP Connections
100
Maximum Serial Connections
7
Control Protocol
VISCA overIP/VISCA RS-422 switchable
max Controller qty (/system)
1 *1
Exposure mode selection
Yes
One-push white balance auto adjustment
Yes
One-push black balance auto adjustment
Yes
Toggle color bars output on/off
Yes
Toggle backlight compensation on/off
Yes
Toggle flicker compensation on/off
Yes
Display the status of iris,gain,shutterspeed and zoom position
Yes
R gain and B gain adjustment
Yes
R black and B black adjustment
Yes
Master black adjustment
Yes
Detail level display
Yes
Detail level adjustment
Yes
Knee point display
Yes
Knee point adjustment
Yes
AE level display
Yes
AE level adjustment
Yes
Iris setting display
Yes
Iris value adjustment
Yes
Gain setting display
Yes
Gain value adjustment
Yes
Shutter speed display
Yes
Shutter speed adjustment
Yes
Supplied Accessories
*SafetyRegulations (1)
Warranty (1)*2
DownloadSite Information (1)
Notes
* 2Notincluded with models sold in China
Availablefunctions/specifications depend on camera specification
