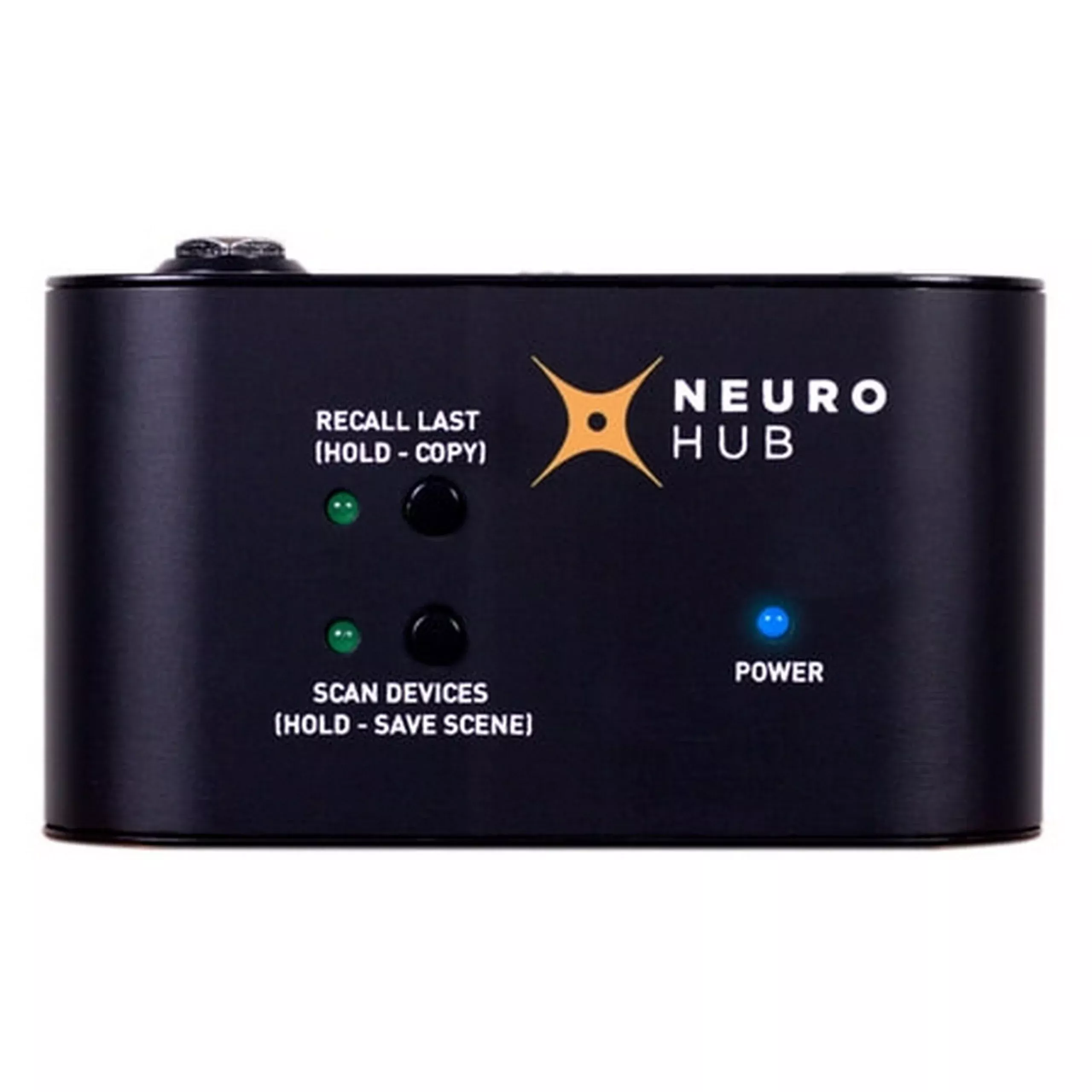

Source Audio Neuro Hub MIDI Interface
The NeuroHub brings full MIDI functionality to all of Source Audio’s One Series andSoundblox 2 pedals. Connect the Hub to as many as five pedals and combine theminto a thoroughly integrated multi-pedal system. This breakthrough in effecttechnology introduces Source Audio’s new scene saving functionality, enablingthe creation of up to 128 single or multi-pedal presets (i.e. “scenes”), eachrecallable via MIDI Program Change messages. Simply dial in your One Series andSoundblox 2 effects as you would any traditional pedalboard, then hIt’sAVE onthe Hub and your pedal settings are captured! Enjoy the power of one-step scenerecall without the headache of navigating a complicated multi-effectsprocessor.
The Hub’sconnections include standard 5-pin MIDI IN, MIDI OUT/THRU, passive “TRS”expression pedal input, a Hot Hand Sensor Input, mini USB port, and 5Multi-Function outputs. Connect the Dual Expression Pedal, the Reflex UniversalExpression Pedal or the Hot Hand 3 Wireless Effect Controller to the Hub andassign external control to any pedal on your board. Each scene can contain anynumber of external control configurations, including simultaneous Hot Hand andExpression Pedal control of multiple parameters on multiple pedals.
Since theNeuro Hub connections are independent of the signal chain, it is possible tointermingle any non-Source Audio pedal (note: the Hub will not save presets thenon-Source Audio pedals) anywhere in your signal chain.
Key Features
- Standard5-pin MIDI IN and OUT/THRU
- PassiveExpression Pedal input, and Hot HandSensor Input
- Connect upto 5 One Series and Soundbox 2 pedals via the Multi-Function ports
- Save andRecall up to 128 multi-pedal “Scenes” via MIDI Program Changes.
- Access,Edit, and Save pedal presets and scenes via USB port to Mac or PC.
- Compatible(no Scene Saving) with Soundblox 1 and Soundblox Pro.
- Weight: 6oz.
- Dimensions:3.8 in. (W) x 2.1 in. (L) x 1.4 in. (H)
- Powerrequirements: 9 Volts DC @ 40mA (up to 80mA with Hot Hand accessories).
- Power plugsize: 2.1mm (inner dia.), 5.5mm (outer dia.) center negative, barrel positive.
- ExpressionPedal input: Stereo 1/4 in. plug, tip hot, 10k-50k Ohm resistance. Linear type.
- Multi-Functionconnector: 4 conductor, 3.5mm plug.
- System RequirementsWindows: Vista, 7, 8, 8.1, and 10.
- SystemRequirements Mac: 10.7, 10.8, 10.9, 10.10, 10.11.
