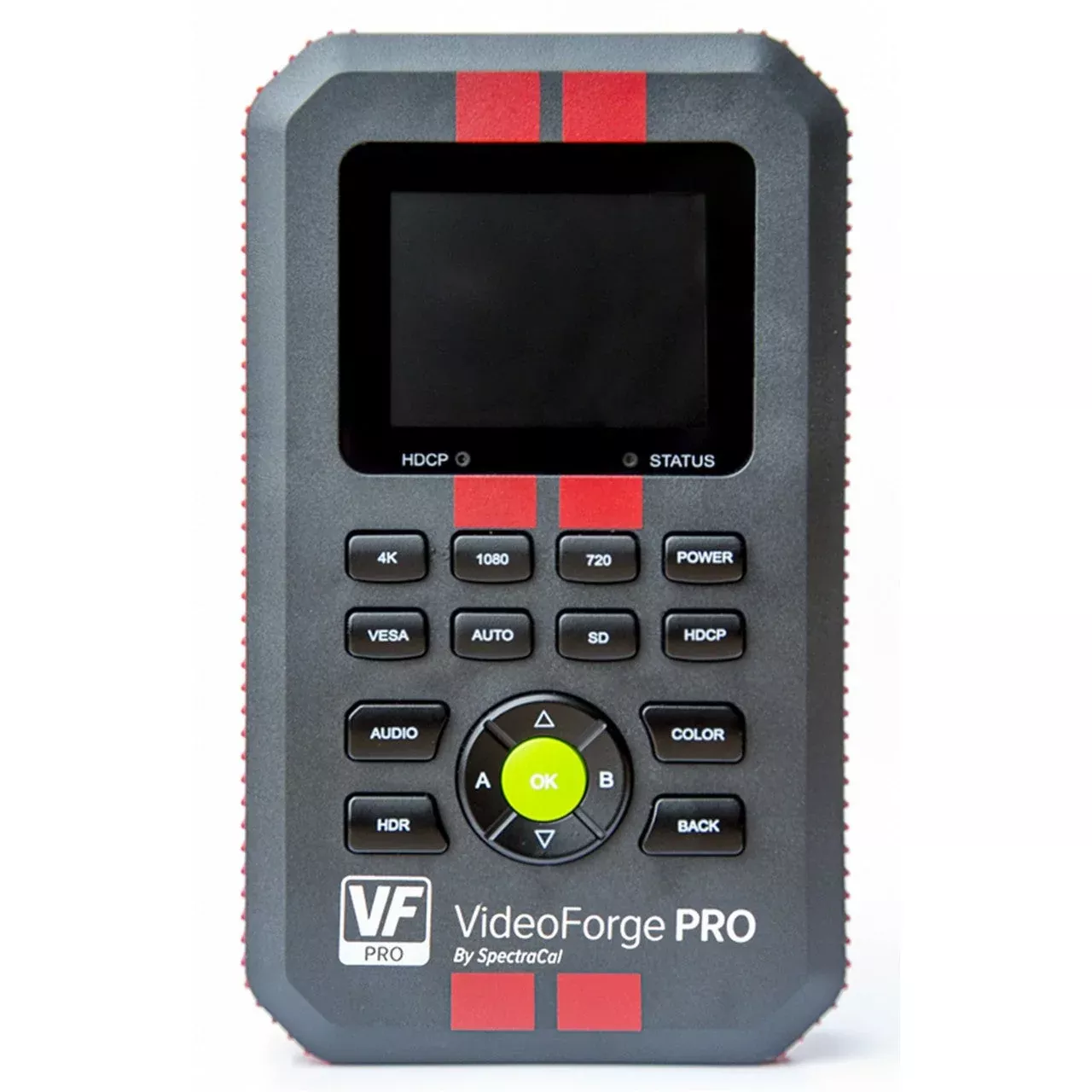

SpectraCal VideoForge Pro 4K HDR Test Pattern Generator
As a standalone generator, the VideoForge Pro provides reference-level test patterns for any display setup using HDMI-in. With thousands of standard calibration patterns, such as brightness and contrast, as well as RGB triplet capabilities for 3D LUTs, the VideoForge Pro is truly one of the most versatile pattern generators available. The VideoForge Pro also supports custom patterns through its external USB port – perfect for whatever unique calibration projects you have in mind.
Key Features
- HDCP 2.2, HDMI 2.0(a), UHD resolutions up to 60p, BT.2020 (RGB output), up to 12-bit deep color
- Compact and lightweightonly twelve ounces! Fits just right in your hand
- Accurate, reliable video test patterns for precise color measurements
- Built for daily use by demanding professionals
- Includes a rechargeable battery for one less cable during calibration
- Completely automated with CalMAN software for fast pattern generation
Technical Specifications
HDMI 2.0(a) 600Mcsc, 2160P60 4:4:4 maximum resolution
HDR (High Dynamic Range) Injector, and management
4k Supported
Supports BT.2020
UHD8, 10, 12 Bit Support
Dolby Vision Support
HDR10 Support
HDCP 2.2 Compatible
2600 MAH Battery
DC 5V Power
HLG hybrid log gamma HDR Supported
Resolutions Supported
3840×2160 (60)
3840×2160 (59.94)
3840×2160 (30)
3840×2160 (29.97)
3840×2160 (24)
3840×2160 (23.98)
1080p (60)
1080p (59.94)
1080P (50)
1080P (30)
1080P (29.97)
1080P (25)
1080P (24)
1080P (23.97)
1080i (60)
1080i (59.94)
1080i (50)
720P (60)
720P (59.94)
720p (50)
480P (59.94)
576p (50)
480i (59.94)
576i (50)
640×480
800×600
1024×768
1280×1024
1366×768
1400×1050
1440×900
1600×900
1600×1200
1680×1050
1920×1200
Settings
RGB Limited (16-235) 8 Bit
RGB Limited (16-235) 10 Bit – Not available for resolutions above 3840×2160 (30)
RGB Limited (16-235) 12 Bit – Not available for resolutions above 3840×2160 (30)
RGB Full (0-255) 8 Bit
RGB Full (0-255) 10 Bit – Not available for resolutions above 3840×2160 (30)
RGB Full (0-255) 12 Bit – Not available for resolutions above 3840×2160 (30)
YC444 8 Bit
YC444 10 Bit – Not available for resolutions above 3840×2160 (30)
YC444 12 Bit – Not available for resolutions above 3840×2160 (30)
YC422 8 Bit
YC422 10 Bit
YC422 12 Bit
YC420 8 Bit – Only Available 3840×2160 (60) and 3840×2160 (59.94) resolutions
YC420 10 Bit – Only Available 3840×2160 (60) and 3840×2160 (59.94) resolutions
YC420 12 Bit – Only Available 3840×2160 (60) and 3840×2160 (59.94) resolutions
AUTO EDID
HDCP 1.4
HDCP 2.2
HDR-10
HLG
Audio 2CH
Audio 8CH
Use Case
The VideoForge Pro is used in professional AV calibration workflows to generate accurate test patterns for optimizing display performance. It is suitable for calibrating TVs, monitors, and projection systems in both field and lab environments.
