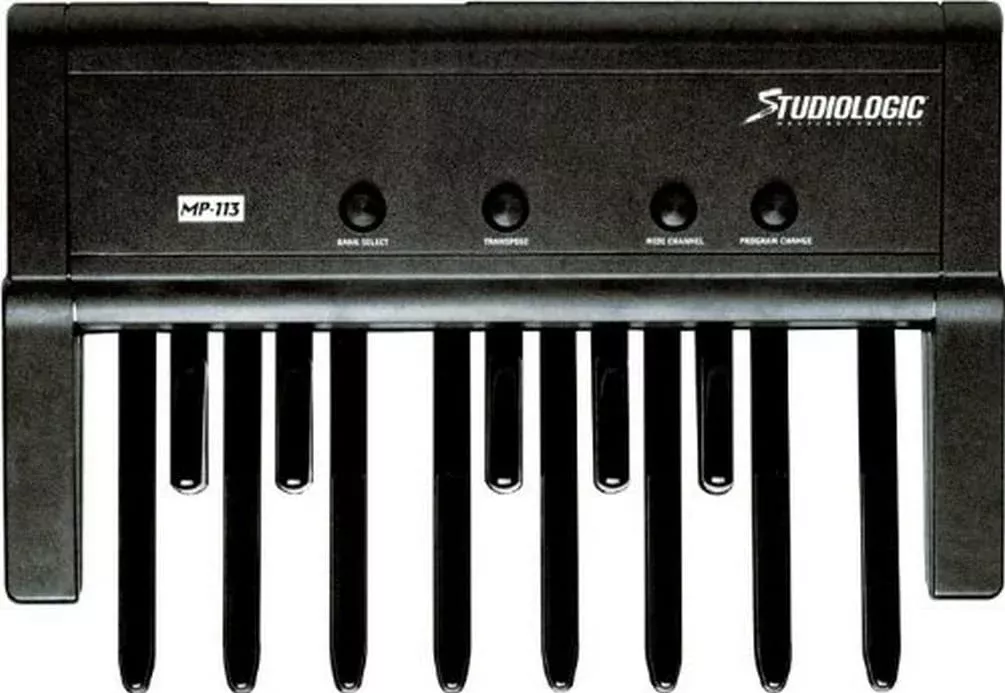

StudioLogic MP-113 Foot Controller Pedalboard
The pedalboard brings the Studiologic touch to your feetallowing control of any MIDI device. It is the perfect companion to yourcompact digital organ and a hands free controller for musicians performingeither on a guitar or a microphone or for driving a massive bass sound with thetip of your toe. The MP Pedalboard control panel allows transposing, MIDIchannel selection and MIDI program change through its 4 rugged generously sizedbig push buttons. Its design features optimize transportability and solidnessboth in the studio and on the stage.
Technical Specifications
Pedalboard
13 notes (C2 C3)
Touch
Dynamic curve
Features
MIDI
1 zone with full extension
Program Change, Bank Select, MIDI Channel, Transpose (max +/24semitones)
Controls / UI
4 Function buttons
Virtual numeric keypad
Connections
MIDI Out
Power supply
DC IN
9V
Adapter
Input: 100-240V / Output: 9V-1A
Size and weight
Width
54 cm / 21,3″
Depth
42 cm / 16,5″
Height
14 cm / 5,5″
Weight
5,5 Kg / 12,1 lbs
Package content
MP-113
Power adapter
Numeric keypad stickers
