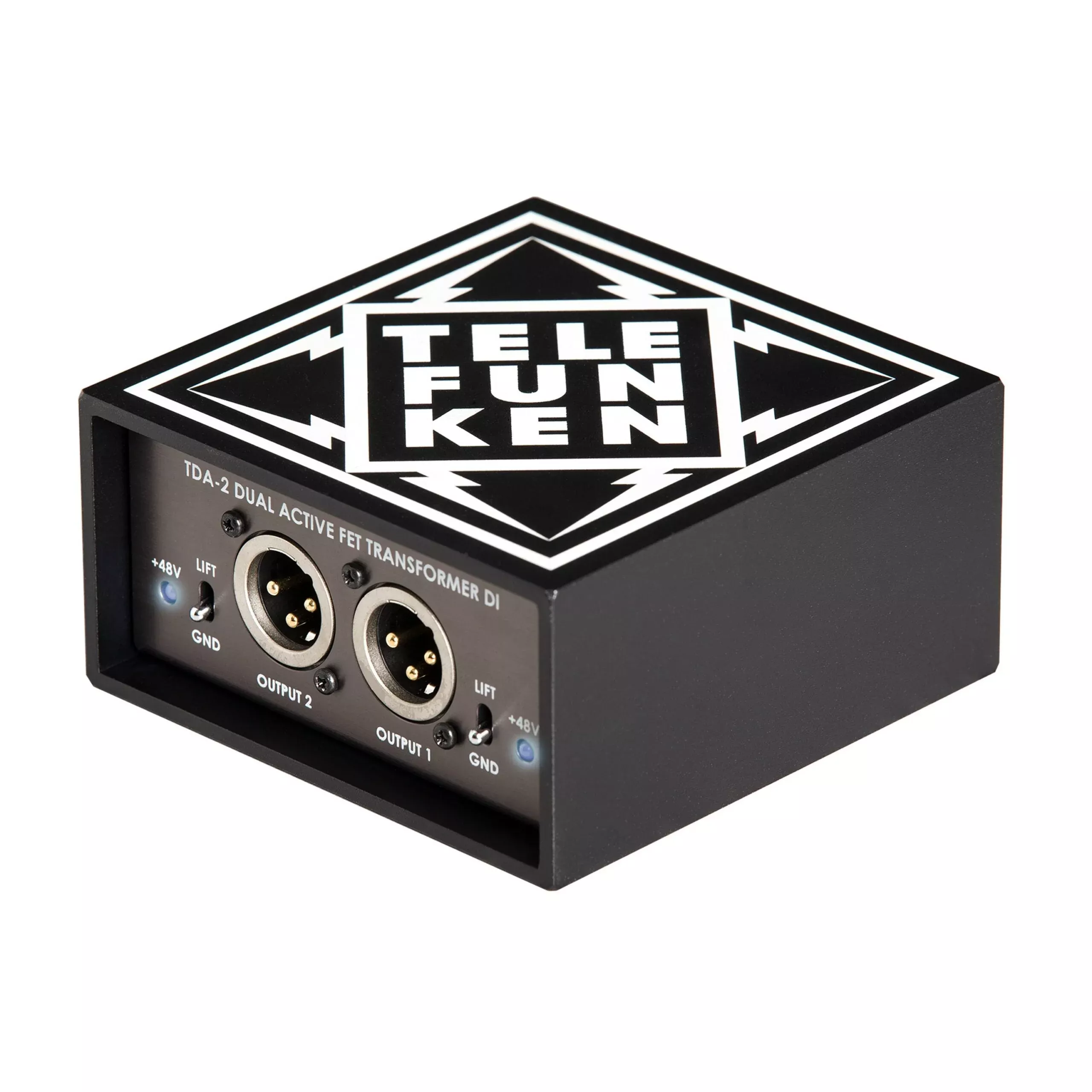

Telefunken TDA-2 Active Stereo Direct Injection Box
The Telefunken TDA-1 (mono unit) and TDA-2 (dual unit) are new active FET direct box designs that utilize top quality components in a modern take on classic circuitry to give you a full, rich character that both complements and retains the natural tone and feel of your instrument. The TDA circuit employs discrete Class-A FET circuitry coupled with a high quality transformer that provides the perfect balance between clean, high headroom performance and warm, saturated tone with vibe.
Key Features
- Custom-wound OEP/Carnhill transformer, made in the UK
- Rugged aluminum construction
- Class-A discrete FET circuitry
- Recessed switches and connectors for protection
- +48V phantom powered with LED indicator
- -15 dB pad switch
- Ground lift switch
- 100% through-hole components
- Amphenol connectors
- WIMA, Nichicon, and Panasonic capacitors
- 1% 1/4W metal film resistors
- 3-year warranty
Technical Specifications
Channels
2
Transformer
Custom-Wound OEP/Carnhill Transformer
Frequency Range
20 Hz – 50 kHz, ±1 dB
Noise
-116 dBV (unweighted)
Input Impedance
> 30k
Output Impedance
<250
Power Requirement
+48 VDC Phantom Power
Current Draw
3.8 mA
Weight
459 g
Dimensions
100 mm L x 100 mm W x 50 mm H
Maximum Input
+3.5 dBV (no pad), +18 dBV (with pad)
Input Connection
1/4″ Jack
Output Connection
XLR Output, 1/4″ Thru
