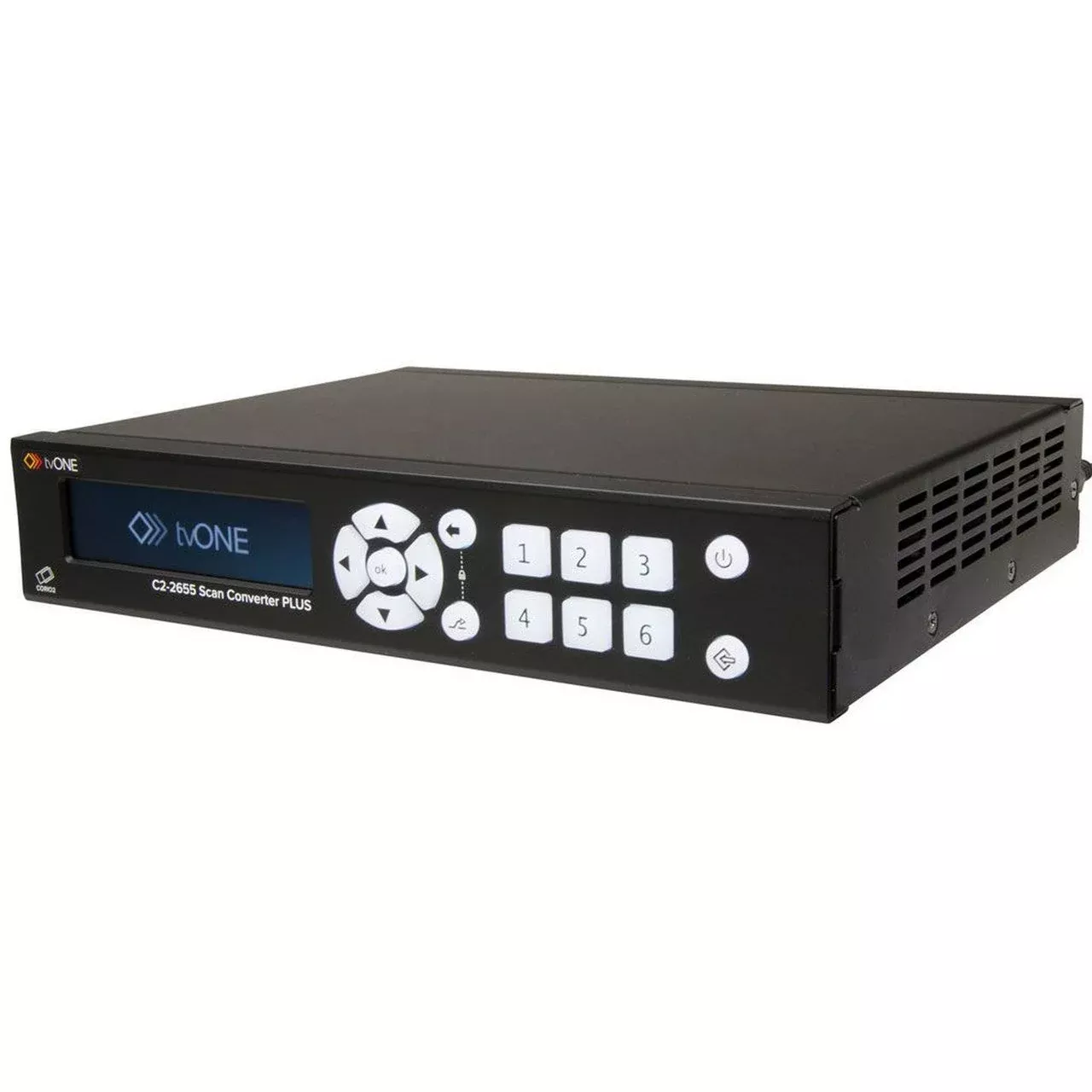

tvONE C2-2655 Scan Converter Plus
The C2-2655Scan Converter PLUS provides high quality bi-directional conversion andswitching between a wide variety of analog and digital video formats. Living upto its designation as a “Scan Converter” the C2-2655 supports HDMI, DVI,Composite Video, YC, YUV, YPbPr or RGB, on both inputs and outputs, andSD/HD/3G-SDI on output only. The high resolution RGB/YPbPr output is selectableat virtually any HDTV resolution and NTSC, PAL, PAL-M, and PAL-N standards areall supported.
Twelveuser-defined presets are readily available for instant, on-the-fly adjustmentto diverse customized applications.
Audio -Integral Stereo Audio switching is provided by an integral 4×1 audio routingswitcher. The four impedance-independent unbalanced inputs follow the videoinput selection. A rear panel terminal block and a 3.5mm jack-socket providesaccess.
EmbeddedAudio Support allows any audio input to be embedded on all outputs whichsupport embedded audio data (HDMI/Universal DVI/SDI). The unit is housed in adesktop case and can be rack-mounted with an optional 19-inch rackmount kitthat holds one or two units.
Key Features
- Up/Down/CrossConversion PC to Video
- DigitalInputs: Universal DVI*, HDMI (DVI 1.0, HDCP 1.4)
- AnalogInputs: YUV/YPbPr, RGB/YPbPr, CV, YC
- DigitalOutputs: SD/HD/3G-SDI, Universal DVI*, HDMI (DVI 1.0, HDCP 1.4)
- AnalogOutputs: Universal DVI* (RGB/YPbPr/YUV), CV, YC
- AnalogInput: PC to 1920×1080, HDTV to 1080p/60
- AnalogOutput: PC to 1024×768, HDTV to 1080p/60
- HDMI &DVI Input : PC to 1920×1080, HDTV to 1080p/60
- HDMI &DVI Output : PC to 1024×768, HDTV to 1080p/60
- Supports:NTSC, PAL, PAL-M, PAL-N
- MotionCompensation & 3:2 Pulldown
- TemporalInterpolation & Diagonal Interpolation
- AutomaticIncoming Resolution Detection
- Calibrate-Automatic picture sizing of PC inputs
- Auto-SwitchingAutomatically switch between connected inputs
- 4:4:4 Fullbandwidth Chroma Sampling for RGB sources.
- 4:2:2 for YCand CV sources
- HDMI YUVsupport for either 4:4:4 or 4:2:2 sampling
- Video signalparameter adjustments
- Integral 4x1Stereo Analog Audio Routing Switcher, fully integrated with digital audio
- Stereo AudioEmbedding on capable outputs (Universal DVI*, HDMI, SDI)
- RS-232 andIP Interface for Control Software
- VariableImage Zoom to 10X and Shrink to 10%
- Genlock
- Framelock
- PIP,Chromakey and Lumakey
- OptionalSingle/Dual Rackmount Kit
TechnicalSpecifications
Video Input
Television Standards
NTSC, PAL,PAL-M, PAL-N, SECAM
Composite Video
1x via BNC& 1x via Universal DVI
YC (S-Video)
1x via 4-PinMini-DIN & 1x via Universal DVI
HDTV
1x via HDMI& 1x via Universal DVI
Computer Inputs
Signal Type
1x Analogvia PC/HD HD15, 1x Universal DVI*
Format
RGBHV, RGBS,RGsB, YPbPr, YUV
Analog Signals
PC to1920x1080, HD to 1080p/60
DVI & HDMI signals
PC to1920x1200, HD to 1080p/60
Video Outputs
Television Standards
NTSC, PAL,PAL-M, PAL-N
Composite Video
1x via BNC
YC (S-Video)
1x via 4-PINMini-DIN
YUV, YPbPr
1x viaUniversal DVI
HDTV
1x via HDMI
SD/HD/3G-SDI
1x via BNC
Computer Outputs
Signal Type
1x UniversalDVI* & 1 x HDMI
Format
RGBHV, RGBS,RGsB, YPbPr
Analog Signals
PC to1024x768, HD to 1080p/60
DVI & HDMI Signals
PC to1024x768, HD to 1080p/60
Audio Input/Output
Inputs
3xUnbalanced via Terminals,
1xUnbalanced via 3.5mm jack
1x HDMI, 1xUniversal DVI
Outputs
Unbalancedvia Terminals,
1x HDMI, 1xUniversal DVI, 1x SDI
De-embedding support
1 stereopair at 32 kHz, 44.1 kHz, 48kHz from HDMI
Embedded support
1 stereopair at 48kHz
Control Methods
Front Panel
via FrontPanel Buttons & OSD
RS-232 Interface
via D9Female Connector
IP Interface
RJ45Connector
ControlSoftware included
Warranty
Limited 5Years Parts and Labor
Size (H-W-D)
42 x 218 x189mm (1.63″ x 8.6″ x 7.4″)
Weight (Net)
1.26 Kg(2.78 lbs) excluding PSU
