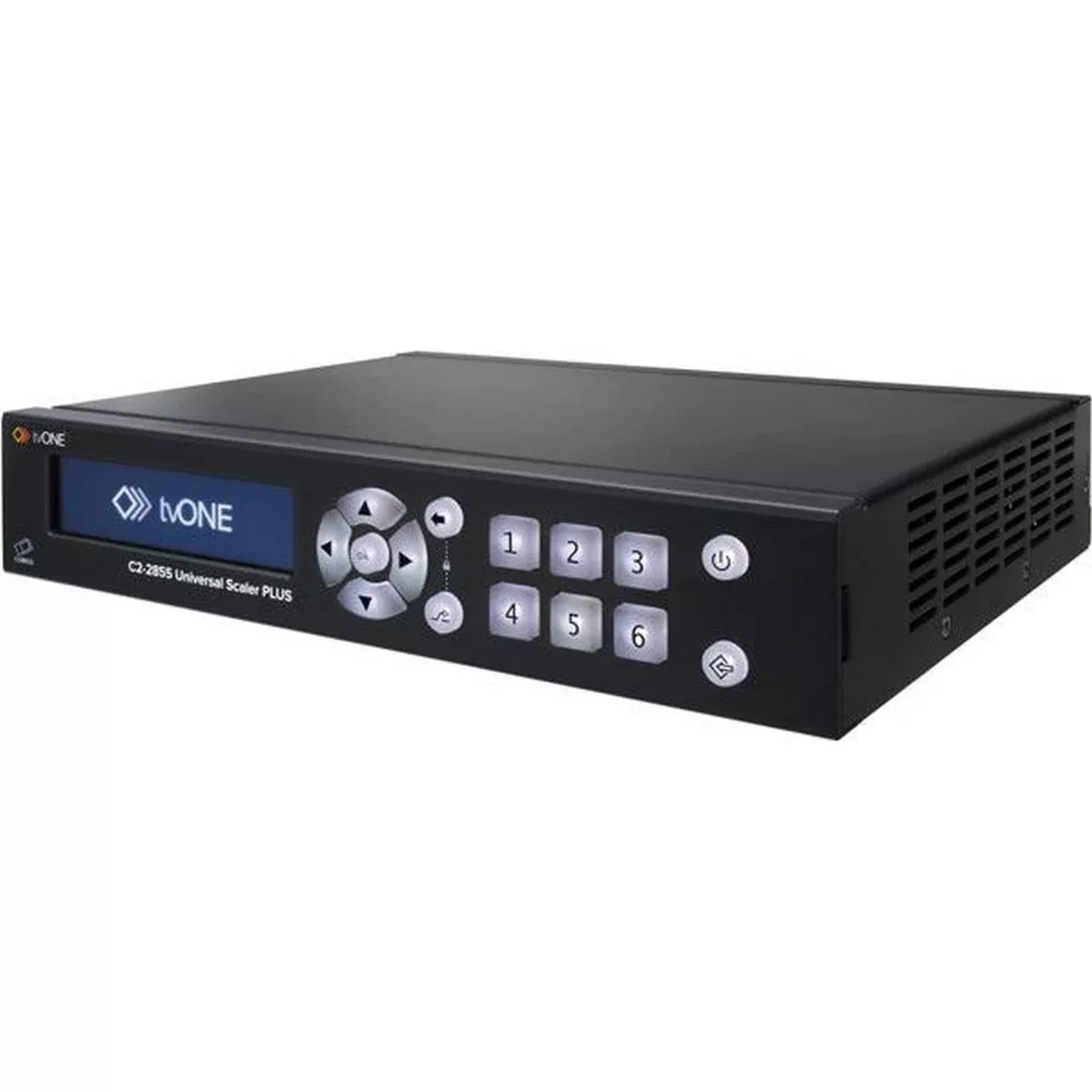

tvONE C2-2855 Universal Scaler Plus
C2-2855Universal Scaler Plus is first in a new generation of high-performancescalersthat provides best-in-class video scaling and format conversion along withrevolutionary, intuitive user interface tools. This new design has moreinput/output flexibility than any other previous tvONE scaler, and it can beset up in less than 1/3 the time of the previous generation. The unit can bemanaged from the front panel with its new, crystal clear OLED display andcolor-modulated, backlit buttons or by IP via computer-based control panel. AnRS232 serial interface is also provided for use with 3rd party control systems.
Living up toits designation as a “Universal Scaler” the C2-2855 supports SD/HD/3G-SDI,HDMI, DVI, Composite Video, YC, YUV, YPbPr or RGB, on both inputs and outputs.In addition to extremely high quality scaling and conversion, the C2-2855 alsoprovides powerful Picture-in-picture, keying and logo insertion featuress . Itstores up to 5 still images and 5 logos for layering in the output video.Twelve user-defined presets are readily available for instant, on-the-flyadjustment for diverse customized applications.
AudioAdvanced audio architecture provides integrated 4×1 audio switching. The fourimpedance-independent unbalanced inputs follow the video selection. A rearpanel terminal block and a 3.5mm jack-socket provides versatile access.Embedded Audio Support allows any audio input to be embedded on the HDMI, DVI,and SDI outputs. The C2-2855 can also de-embed audio input from HDMI or SDIsignals for routing to analog audio outputs.
Key Features
- Up/Down/CrossConversion
- DigitalInputs: SD/HD/3G-SDI, DVI-U*, HDMI (DVI 1.0, HDCP 1.4)
- AnalogInputs: YUV/YPbPr, RGB/YPbPr, CV, YC
- DigitalOutputs: SD/HD/3G-SDI, DVI-U*, HDMI (DVI 1.0, HDCP 1.4)
- AnalogOutputs: DVI-U* (RGB/YPbPr/YUV), CV, YC
- Analog: PCto 1920×1080, HDTV to 1080p/60
- HDMI &DVI : PC to 1920×1200, HDTV to 1080p/60
- Supports: NTSC,PAL, PAL-M, PAL-N
- MotionCompensation & 3:2 Pulldown
- TemporalInterpolation & Diagonal Interpolation
- AutomaticIncoming Resolution Detection
- Auto-SetCalibrate – Automatic picture sizing of PC inputs
- Auto-SwitchingAutomatically switch between connected inputs
- 4:4:4 Fullbandwidth Chroma Sampling for RGB sources
- 4:2:2 forSDI, YC and CV sources
- HDMI YUVsupport for either 4:4:4 or 4:2:2 sampling
- Video signalparameter adjustments
- Integral 4x1Stereo Analog Audio Routing Switcher, fully integrated with digital audio
- Stereo AudioEmbedding on capable outputs (DVI-U*, HDMI, SDI)
- RS-232 andIP Interface for Control Software
- VariableImage Zoom to 10X and Shrink to 10%
- Genlock
- Framelock
- PIP,Chromakey and Lumakey
- OptionalSingle/Dual Rackmount Kit
TechnicalSpecifications
Video Input
Television Standards
NTSC, PAL,PAL-M, PAL-N, SECAM
Composite Video
1x via BNC& 1x via DVI-U
YC (S-Video)
1x via 4-PinMini-DIN & 1x via DVI-U
HDTV
1x via HDMI(DVI 1.0, HDCP 1.4) 1x via DVI-U
SD/HD/3G-SDI
1x via BNC
Computer Inputs
Signal Type
1x Analogvia PC/HD HD15, 1x DVI-U
Format
RGBHV, RGBS,RGsB, YPbPr, YUV
Analog Signals
PC to1920x1080, HD to 1080p/60
DVI & HDMI signals
PC to1920x1200, HD to 1080p/60
Video Outputs
Television Standards
NTSC, PAL,PAL-M, PAL-N
Composite Video
1x via BNC
YC (S-Video)
1x via 4-PINMini-DIN
YUV, YPbPr
1x via DVI-U
HDTV
1x via HDMI
CECpass-through
SD/HD/3G-SDI
1x via BNC
Computer Outputs
Signal Type
1x DVI-U*& 1 x HDMI
Format
RGBHV, RGBS,RGsB, YPbPr
Audio Input/Output
Inputs
3xUnbalanced via Terminals,
1xUnbalanced via 3.5mm jack
1x HDMI, 1xDVI-U*, 1x SDI
Outputs
Unbalancedvia Terminals
1x HDMI, 1xDVI-U*, 1x SDI
De-embedding support
1 stereopair at 32 kHz, 44.1 kHz, 48kHz from HDMI, 48kHz SDI
Embedded support
1 stereopair at 48kHz
Control Methods
FrontPanel
RS-232Interface
IP Interface
ControlSoftware included
Warranty
Limited 5Years Parts and Labor
Size (H-W-D)
42 x 218 x189mm (1.63″ x 8.6″ x 7.4″)
Weight (Net)
1.26 Kg(2.78 lbs) excluding PSU
