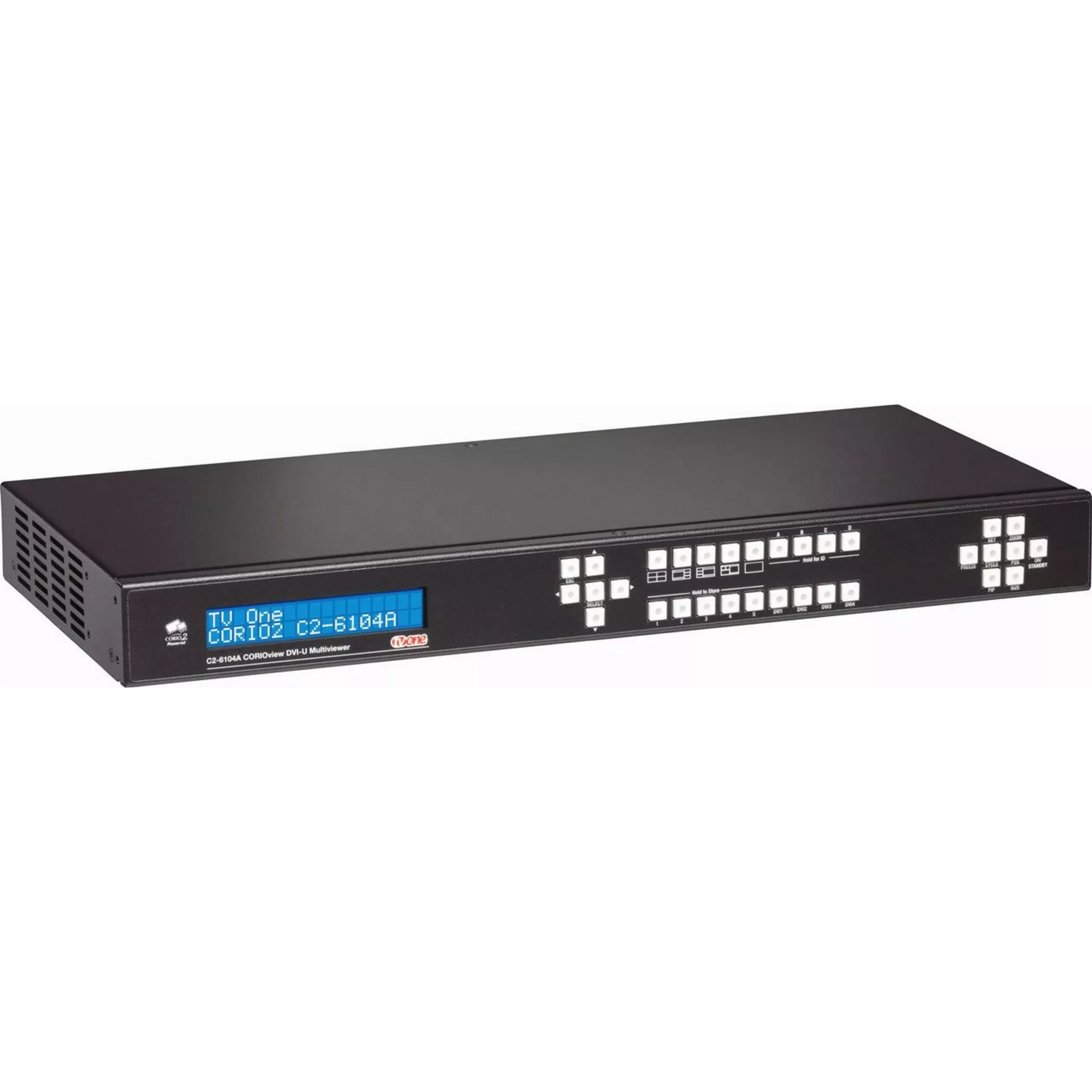

tvONE C2-6104A CORIOview Window DVI-U Processor
The tvONEC2-6104A is a CORIO2 powered 4-window multi-window processor capable ofdisplaying up to 4 different windows on a single screen. Each video window iscapable of being sized, keyed, and layered to meet all viewing requirements.
Customizedpresentation is made easy with color borders and labels available on each ofthe 4 video windows along with an additional input for backgrounds andcascades, allowing for all 4 inputs to be used productively without sacrifice.Additionally, 4 still image stores are available and up to 50 preset views canbe created and saved for later recall.
TheC2-6104-A supports resolution up to 1920×1200@60Hz and HDMI and Universal DVI(DVI-I, DVI-D, and DVI-A) connections. The device also features pixel by pixelscaling, for those times when you just must fit the size exactly the way youneed it to.
Applications:
Control Room
Conference Room
Medical
Classrooms
Key Features
- 4-WindowProcessor
- 4x HighQuality CORIO2 Scaling Engines
- 5x DVI-Uinputs (DVI-I, DVI-A, Composite and S-Video)
- 5th inputfor background or cascading multiple units
- Fully HDCPCompliant
- 4x InternalStill Image Stores
- DVI-D I/Osupport to 1920×1200,1080p@60Hz
- DVI-A I/Osupport to 2048×2048, 1080p@60Hz
- Analogsupports RGBHV, RGBS, RGsB, YPbPr
- 10User-definable Presets for quick setup
- MotionAdaptive De-interlacing and Noise Reduction for YUV and YPbPr inputs
- Color Bordersand Source Labeling
- VariableImage Zoom to 10X and Shrink to 10%
- Per-pixel orPercentage Scaling Control
- Autoset -Automatic Analog Picture Sizing
- Chromakey,Lumakey, Genlock and Mix
- Front Panelincludes LCD, Menu Control and Quick- Setup features
- Control viaRS-232/RS-422/RS-485, Ethernet or Front Panel
- CORIO ToolSuite compatible
- Optionalmodules (e.g. for Tally input/output)
- 1RUrack-mount case
- OptionalTally Module
Technical Specifications
Inputs
UniversalDVI 5x DVI-U (DVI-I + YC/CV) HDMI Compatable and fully HDCP Compliant
DigitalDVI-D Format:
Max HDResolution: 1080p@60Hz
Max PCResolution: 1920×1200@60Hz
Analog DVI-AFormat:
TelevisionStandards: NTSC, PAL, PAL-M, PAL-N, SECAM
Max HDTVResolution: 1080p@60Hz
Max PCResolution: 2048×2048
Output
DVI-I 1xDVI-I Connector (HDMI Compatable)
DigitalDVI-D Format:
Max HDResolution: 1080p@60Hz
Max PCResolution: 1920×1200@60Hz
Analog DVI-AFormat:
TelevisionStandards: NTSC, PAL, PAL-M, PAL-N, SECAM
Max HDTVResolution: 1080p@60Hz
Max PCResolution: 2048×2048
Control Methods
Front PanelButtons & LCD: RS-232/RS-485/RS-422
Ethernet(TCP/IP): RJ45
Mechanical
Desktop Case(HxWxD): 1.75 x 17 x 7.9″ (44 x 420 x 200mm)
Weight(Net): 6.79Lbs (3.08kg)
Warranty
Limited 5Years Parts and Labor
