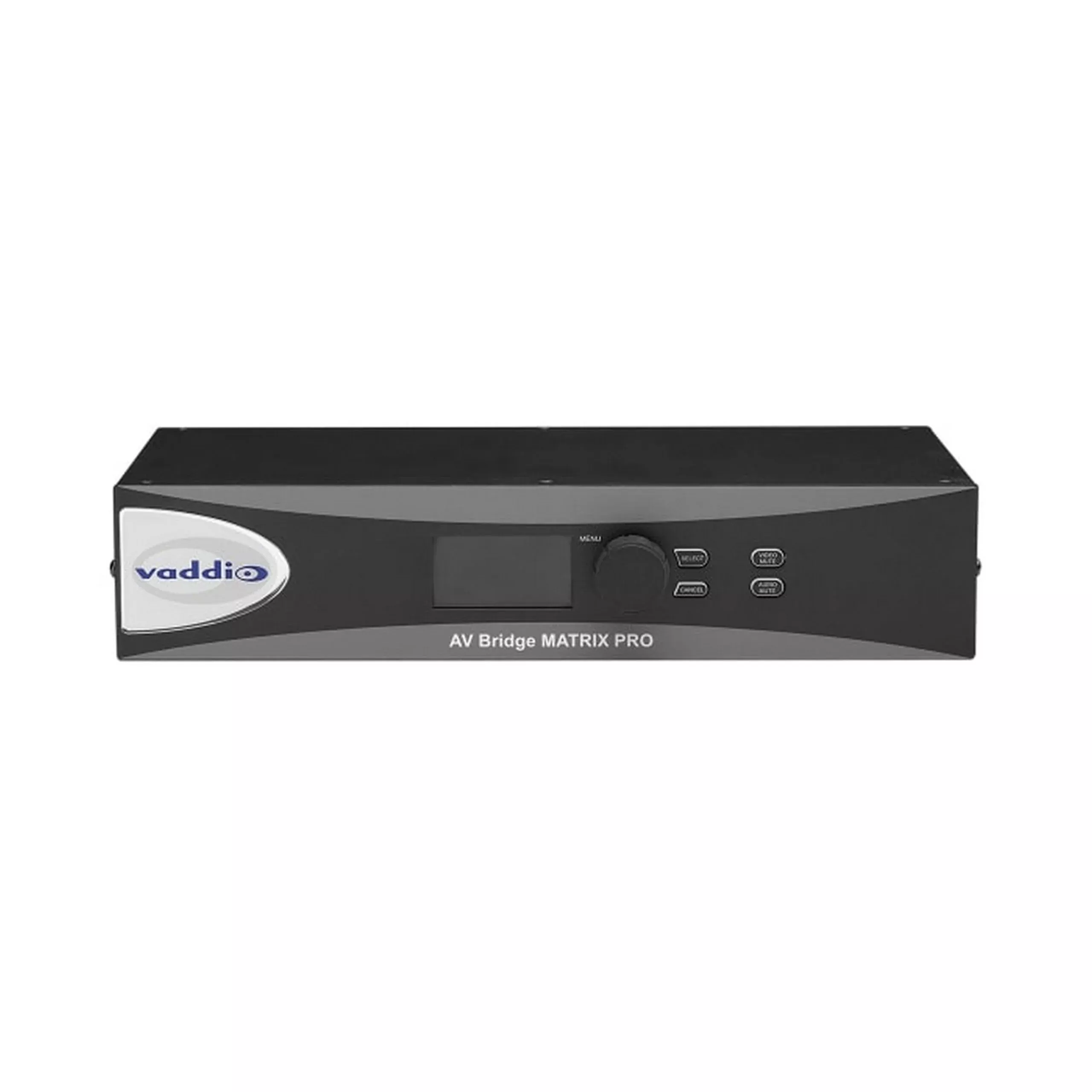

Vaddio AV Bridge MATRIX PRO Encoder
Why have afull rack of gear when one device can do it all? The AV Bridge MATRIX PROencoder provides a simple way to add multiple cameras, microphones and other AVdevices to a traditional AV room design. It then manages the complex process ofmixing, switching and controlling those devices into a single USB and IPstream.
Users getthe advantage of integrating their PC-based platform and intuitive UC interfacewhile being connected to multiple sensory inputs that provide a professional AVexperience. At the same time, they also get access to cloud-based applicationsand a UC platform of choice for content creation and sharing, audioconferencing, video conferencing, and a multitude of other collaborationactivities.
This PackageIncludes:
AV BridgeMATRIX PRO
Quick-StartGuide
24V 3.75Apower supply with AC cord set(s)
2 qty rackears
8 qty3-position phoenix-style connectors
1 qty12-position phoenix-style connector
6′ (1.83m)USB 2.0 cable, type A to B
Key Features
- AV encoderwith simultaneous IP and USB 2.0 streaming
- High-definitionstreaming quality – 1080p
- Four-inputHD video switcher
- Built-InQuick-Connect Technology
- 9x5cross-point audio matrix mixer/switcher
- Four EasyMicaudio ports with built-in AEC
- Easy,intuitive web-based user interface
Technical Specifications
Color
Black
Certifications
CE Approved,FCC Approved, TAA Compliant
Product Width
18.93″(48.08 cm)
Product Height
3.47″(8.81 cm)
Product Depth
8″(20.32 cm)
Product Weight
5.6 lbs(2.54 kg)
Power Type
Local Power
Input Ports
HDMI, EZPower/Video, HD-YPbPr, RGBHV
Output Ports
HDMI, HSDS,IP-Streaming
Browser-based User Interface for RemoteControl
Built-in
Control Method
Joystick,Web UI
OneLINK Compatibility
No
Top Resolution
1080p/60
Operating Temperature
32 to 104F(0 to 40C)
Warranty
2 years
Power Supply
24 VDC, 3.75A
Quick-Connect Compatibility
No
