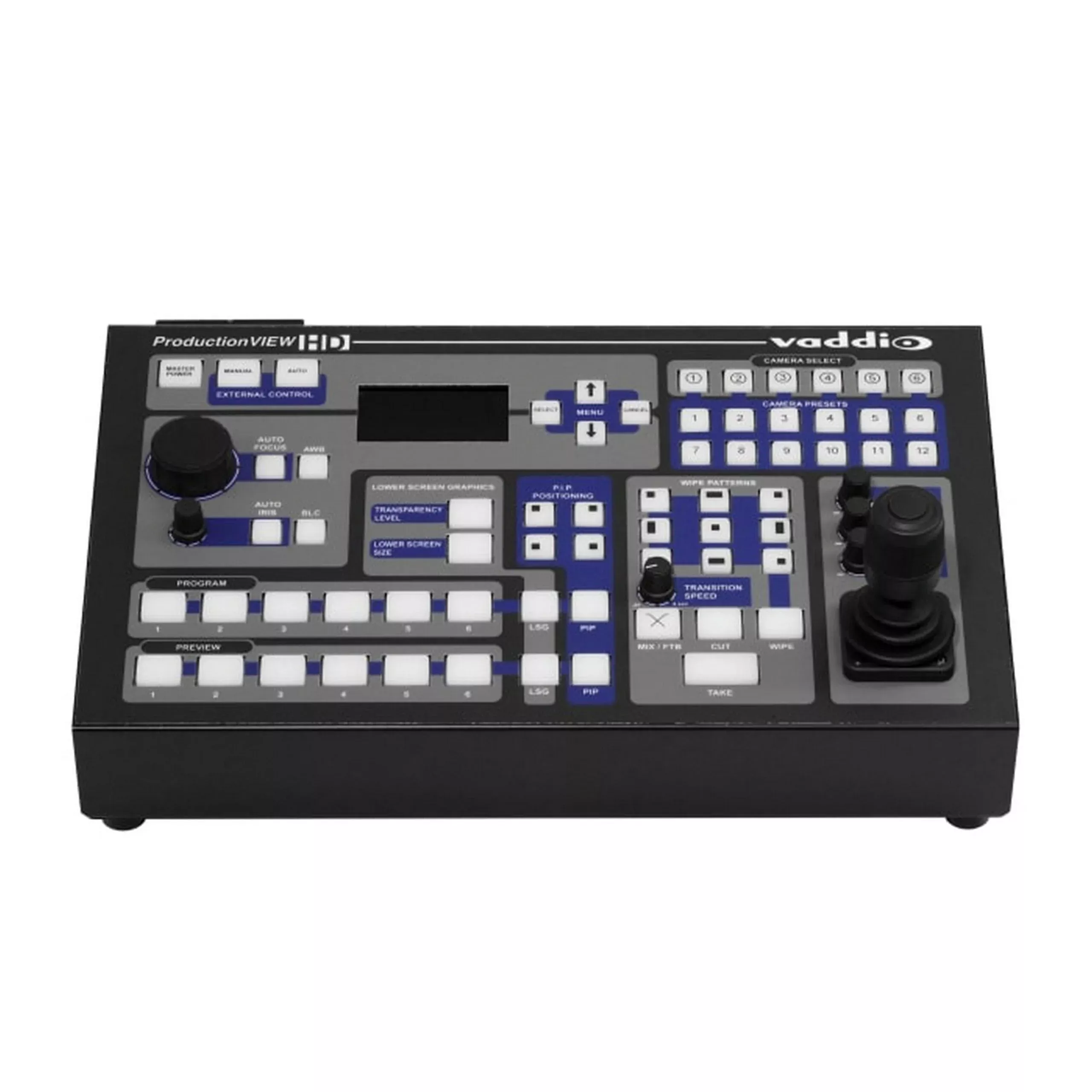

Vaddio ProductionVIEW HD Camera Control Console
TheProductionVIEW HD multi-camera control system is designed to handle the mostdemanding live broadcast or staging events, yet it’s simple enough to allow anovice to shoot like a pro. ProductionVIEW HD integrates PTZ camera control andmulti-format HD/SD live switching with real-time graphics and effects into oneeasy-to-use control console.
Thecompletely redesigned surface gives system users real-time knobs and buttons tocontrol functions. Because ProductionVIEW HD is a live broadcast console, not acomputer, the entire system produces only one frame of delay – a criticalrequirement where image magnification is used.
This PackageIncludes:
ProductionVIEWHD switcher
18V powersupply with AC cord set(s)
USB drivewith demo lower screen graphics
Quick-StartGuide
Key Features
- Transitionsinclude cross fade, nine wipes, cut, fade to black (FTB)
- 12 camerapresets
- Lower ScreenGraphics feature for inserting graphics over video
- Triggerinputs for camera switching
- Discretepan, tilt, and zoom speed knobs
Technical Specifications
Certifications
CE Approved,FCC Approved, TAA Compliant
Product Width
16″(40.64 cm)
Product Height
4″(10.16 cm)
Product Depth
10″(25.40 cm)
Product Weight
9.5 lbs(4.31 kg)
Power Type
Local Power
Input Ports
HD-YPbPr,Composite, S-Video
Output Ports
HD-YPbPr,Composite, S-Video
Control Method
RS232
Top Resolution
1080p/60
Operating Temperature
32 to 104F(0 to 40C)
Warranty
2 years
Power Supply
18 VDC, 2.75A
