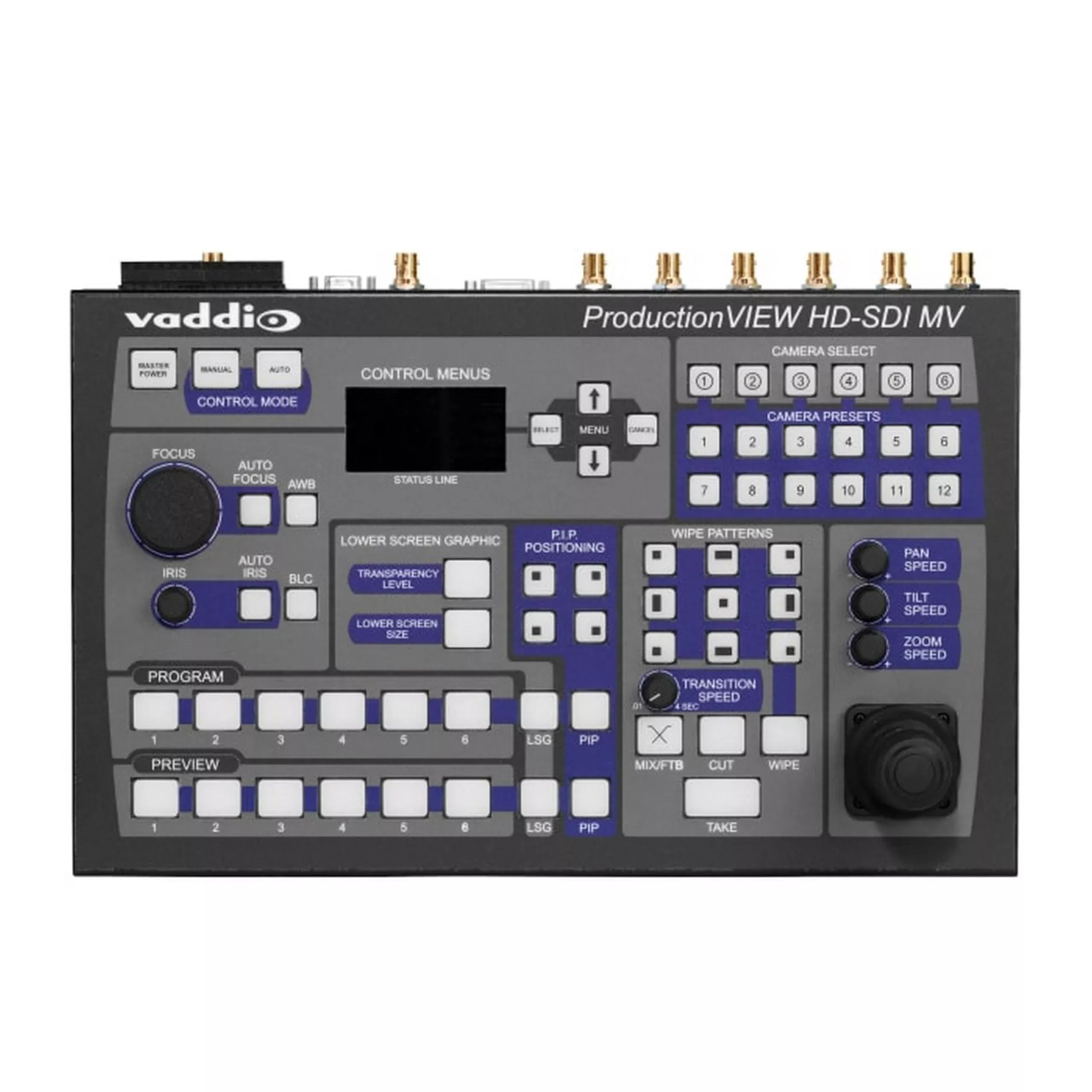

Vaddio ProductionVIEW HD-SDI MV Camera Control Console
TheProductionVIEW HD-SDI MV is an all-in-one camera control console withHD-SDI/SDI video switching/mixing, a built-in multiviewer, lower screengraphics and automated control functionality.
New Multi-ViewInput Screens allow the user to select between screen layouts that displayfour, five or six inputs. When set up with four or five preview windows, thepreset video thumbnails become larger on the bottom of the screen. In additionthe Preview and Program windows can be swapped on the multiviewer output.
WithVaddio’s TeleTouch touch screen monitors, all live video feeds can be selectedand up to 12 video thumbnail presets can be created, recalled and stored bysimply touching the monitor. The thumbnails are a snapshot of what the camerapreset shot looks like, to make storing and recalling presets even easier.Simply touch a thumbnail and the camera will pan, tilt and zoom to thatposition. The Cut, Wipe and Fade buttons illuminate on the multiviewer display,giving a visual indication of which effect is active.
Anadditional capability of the system is Dual Bus Multiview output. This allowsthe user to switch between Preview and Program as discrete outputs – with onegoing to an IMAG Projector and the other going to a recording device.
All inputsare autosensing for video resolution, control and camera type. Video inputsinclude five HD-SDI/SDI (480i to 1080p) inputs on BNC connectors and a singleDVI-I input on channel six that allows for multiple formats (DVI-D, YPbPr,RGBHV and HDMI) with 36 additional input resolutions.
This PackageIncludes:
ProductionVIEWHD-SDI MV switcher
18V powersupply with AC cord set(s)
10′ (3m) DVIto HDMI cable
USB drivewith demo lower screen graphics
Quick-Start Guide
Key Features
HD-SDI/SDI(480i to 1080p) and DVI-I Inputs
HD-SDI andHDMI outputs
OptionalTeleTouch Multiviewer Touch Screen
Up to 12stored preset video thumbnails
Transitionsincluding cross fade, nine wipes, cut and fade to black
Lower ScreenGraphics feature for inserting graphics over video
Technical Specifications
Color
Black
Certifications
CE Approved,FCC Approved, TAA Compliant
Product Width
16″(40.64 cm)
Product Height
4″(10.16 cm)
Product Depth
10″(25.40 cm)
Product Weight
9.5 lbs (4.31kg)
Power Type
Local Power
Input Ports
3G-SDI,DVI-I
Output Ports
3G-SDI, HDMI
Control Method
Joystick,Trigger, RS232
OneLINK Compatibility
No
Top Resolution
1080p/60
Operating Temperature
32 to 104F(0 to 40C)
Preset Positions
12
Warranty
2 years
Power Supply
18 VDC, 2.78A
Quick-Connect Compatibility
No
