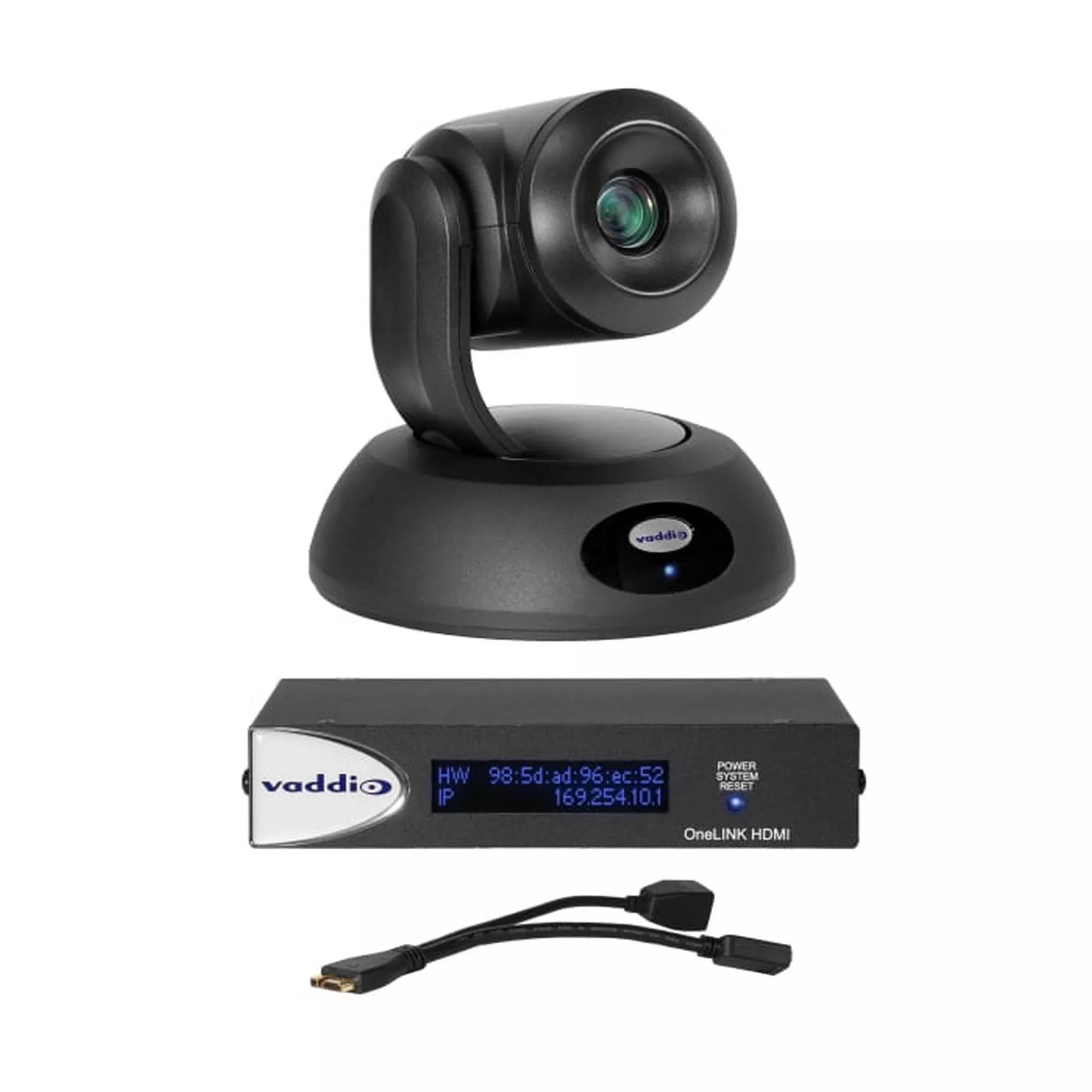

Vaddio RoboSHOT 12E HDBT OneLINK HDMI System for Cisco SX Codecs
Introducingthe RoboSHOT Elite Series – Vaddio’s next generation of professional cameras.Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliverstriking, high-definition video image quality. Cutting-edge image signalprocessing (ISP) results in better light-gathering capabilities, incrediblecontrast and sharp 1080p/60 video, even in dim lighting conditions.
RoboSHOTElite cameras are equipped with enhanced wide dynamic range, which can helpcorrect for environments with uneven lighting by making darker or over-brightareas in video more visible and detailed.
Enjoy IPstreaming (RTSP or RTMP format with H.264 compression) to share live eventslike church services, lectures, or meetings over popular applications likeYouTube, Livestream and Facebook.
A web-baseduser interface gives the user camera control with a web browser from anywherein the world over the IP network. To watch the IP stream, simply enter thecamera’s streaming URL into any standards based (H.264, RTSP format) mediaplayer. Perfect for remote management, network operating centers and overall ITcontrol.
The EliteSeries of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leadingTri-Synchronous Motion technology allowing all three axes of the camera to movesimultaneously for ultra-smooth, natural camera motion.
The RoboSHOT12E cameras are recommended for small to medium spaces such as conferencerooms, training rooms, and classrooms that require a wide angle of view.
Videooutputs include simultaneous HDMI and IP (H.264) streaming.
OneLINKBridge connects a non-USB camera and audio source, and bridges to a USB streamfor easy connection to USB-based conferencing applications such as Skype forBusiness, Google Hangouts, and Zoom.
Along withthe bridging capabilities, the system’s OneLINK Bridge Receiver for HDBaseTCameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft(100 m) on a single Cat-5e/6 cable.
This PackageIncludes:
RoboSHOT 12EHDBT camera (black or white)
Thin ProfileWall Mount (black or white) with mounting hardware and installation manual
Vaddio IRRemote Commander
OneLINK HDMIInterface
48V powersupply with AC cord set(s)
10.25″(26 cm) Cisco CAB-PHD4XS2-SPLIT cable
3′ (0.9m)cat-5 cable, black
3′ (0.3m)directional cat-5 cable for Cisco SX20
3′ (0.9m)HDMI cable
EZCameraRS-232 Control Adapter
EZCameraRS-232 Control Adapter 998-1002-232 for Cisco codec serial 9-pin ports
ApplicationNote: Using RoboSHOT Series Cameras with Cisco Codecs
Quick-StartGuides
Key Features
- 12x OpticalZoom
- 1/2.5-typeExmor R CMOS sensor
- 70.2horizontal field of view
- SimultaneousHDMI and IP H.264 streaming
- Remote IPManagement
- Simple,clutter-free camera extension with HDBaseT technology
- Power, videoand control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6cable up to 328 ft. (100m)
- SimultaneousHDMI and IP Streaming outputs
Technical Specifications
Certifications
CE Approved,FCC Approved
Product Width
7.05″(17.91 cm)
Product Height
6.94″(17.63 cm)
Product Depth
6.75″(17.15 cm)
Product Weight
4.85 lbs(2.2 kg)
Signal Type
HDMI,RS-232, IP-Streaming
Power Type
OneLINK
Output Ports
HDMI,IP-Streaming
Zoom
12x
Max Resolution
1080p/60
Field of View
70.2 WideEnd to 4.1 Tele End
Estimated Room Size
SmallConference Room, Large Conference Room, Large Venue
Minimum Illumination
1.0 Lux(F1.6), 100+ Lux Recommended
Browser-based User Interface for RemoteControl
Built-in
Control Method
Joystick,Web UI, Telnet, RS-232 and IR Remote
OneLINK Compatibility
Native
OneLINK HDMI adds
328 ft (100M) Power, Video, Control Extension, HDMI
PTZ Motors
Silent BLDCDirect Drive Motors
Tri-Sync Motion
Yes
Pan and Tilt Range
Pan: +/-160,Tilt: +90 to -30
Pan and Tilt Speed
0.35/sec to120/sec
Pixels
8.51Megapixel (8.57 Total MP)
Top Resolution
1080p/60
Invertible
Yes
Focus System
Auto, Manual
Gain
Auto, Manual
Operating Temperature
32 to 104F(0 to 40C)
Preset Positions
16 + CustomHome Position
White Balance
Auto,Manual, One-Push
Warranty
2 years
Power Supply
48 VDC, 1.36A
Quick-Connect Compatibility
No
Distance
328 ft (100m)
