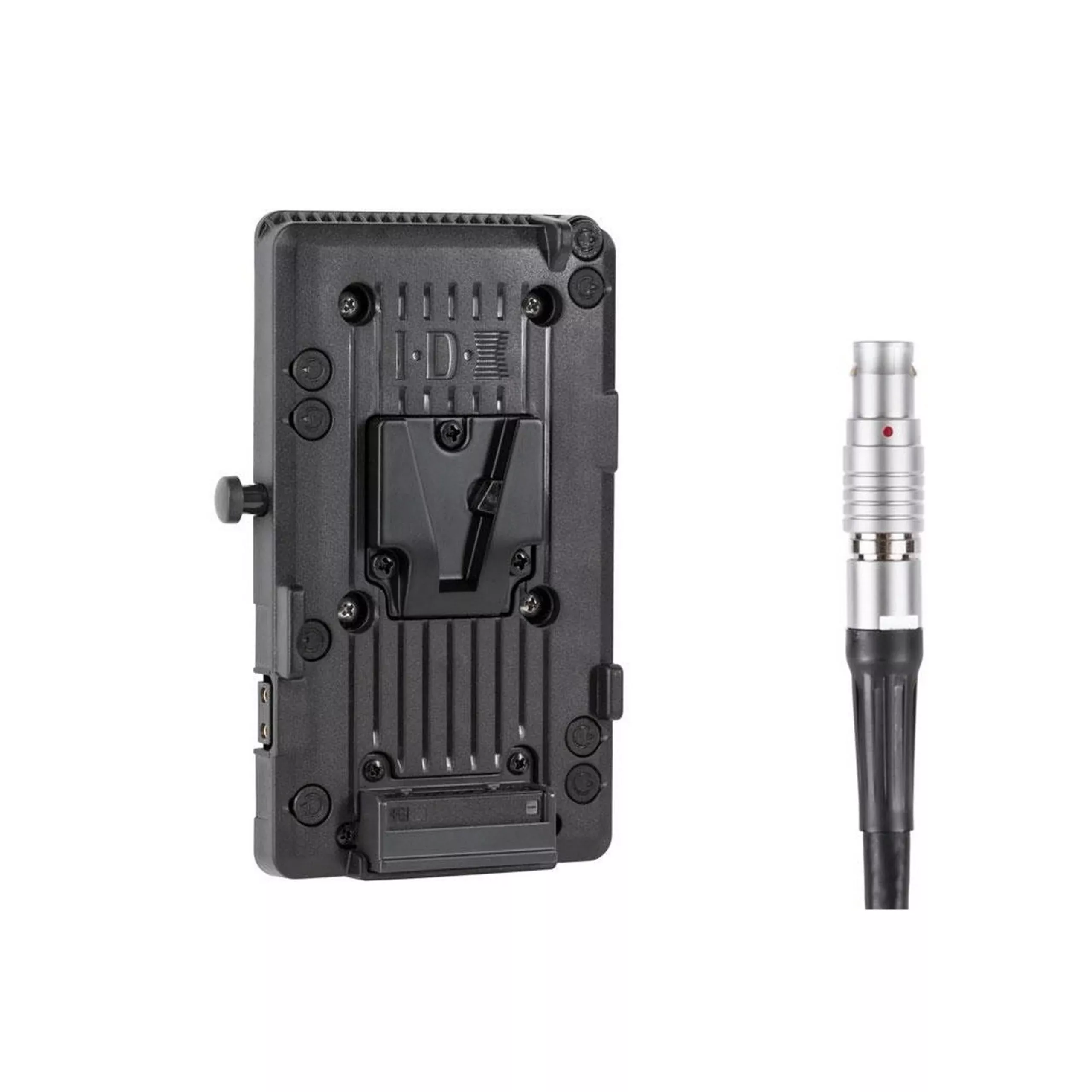

Wooden Camera 196800 V-Mount Plate for RED One
WoodenCamera brand V-Mount plate utilizing an IDX V-Mount and RED ONE LEMO compatibleconnector. This plate is wired correctly to display RED Brick and smart V-mountbattery percentage on displays.
16″cable exits the right side of the plate allowing easy insertion into thecamera.
Customlengths available up to 6ft at the standard price. Additional lengths availableas needed. Send us an email with your requirements: [email protected]
2x D-Tapports for accessory power.
MountingOptions:
To mount theWC V-Mount onto the RED ONE, we recommend the below combination:
Top Mount(RED ONE) – mounting bracket that attaches to the top of RED ONE camera
Bolt OnBattery Mount – a bolt on mounting plate that attaches a V-Mount or Gold Mountplate to Top Mount (RED ONE)
For anadjustable mount system attached to rods, use the Battery Slide or RecorderSlide paired with the appropriate Rod Clamp: Rod Clamp (15mm LW), Rod Clamp(15mm Studio), and Rod Clamp (19mm).
Connectorsused in this assembly are not manufactured by LEMO but are made to the same specificationsand are LEMO compatible.
Weight:272.155 g (0.6 lbs)
Dimensions:143.2 x 92 x 21.9 mm (5.6 x 3.6 x 0.9 in)
