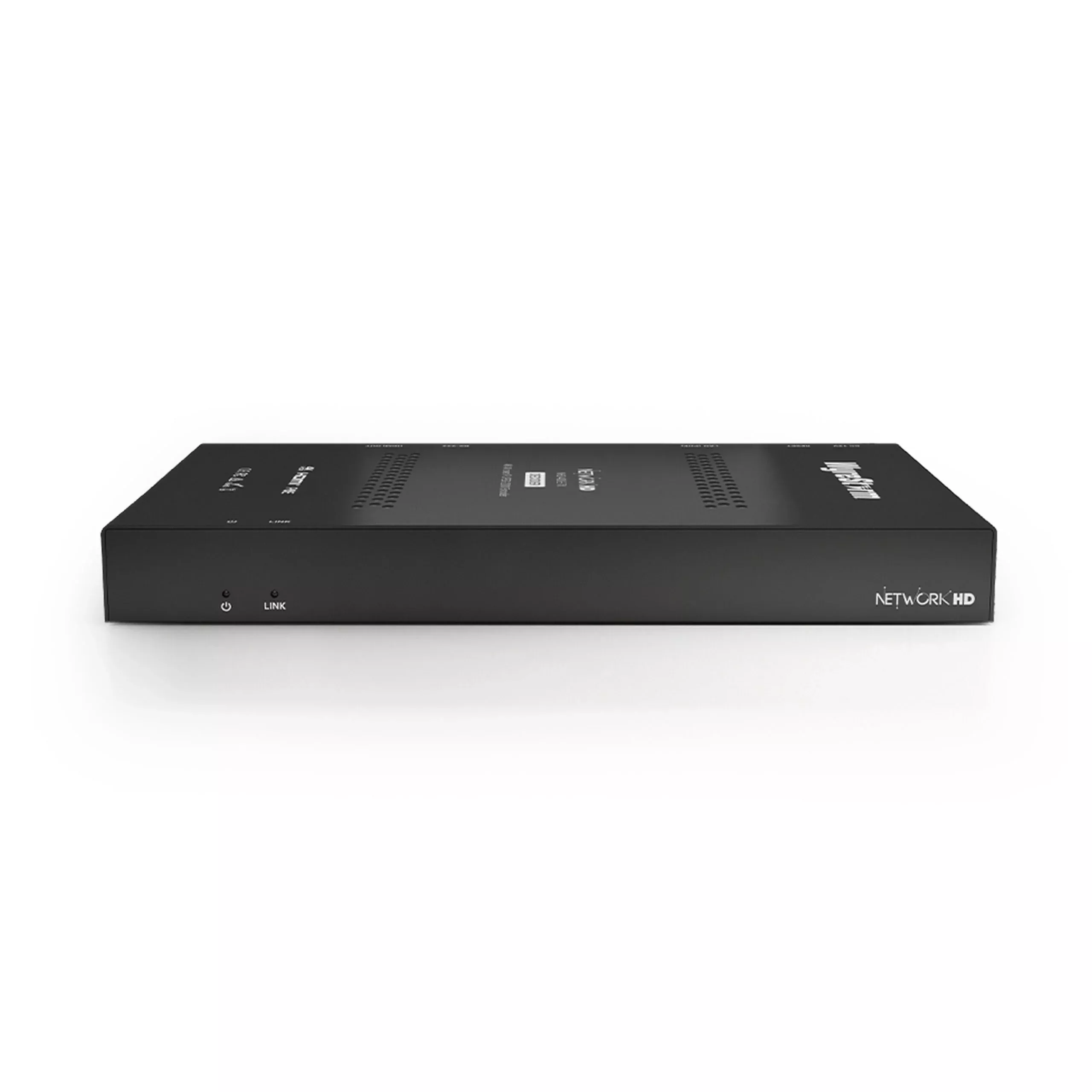

WyreStorm NetworkHD 400 Series 4K AV over IP JPEG 2000 Decoder
WyreStormbrings stunning 4K HDR video, video resolution scaling, multi-channel audio andaudio matrixing to IP with the NetworkHD 400 Series’ NHD-400-E-RX AVoIPdecoder. The reduced cost Type E version removes some control ports but retainsthe 400 Series core features. Used in conjunction with any 400 Series encoder,the NHD-400-E-RX seamlessly handles mixed resolution sources, content anddisplay devices for matrix and video wall functionality up to 16×16 with imagerotation and bezel compensation
Key Features
- Stunningvisually lossless 4K UHD HDMI video with HDR over 1GbE / IP networks
- Ultra-lowend-to-end latencyonly a single video frame (16ms at 60fps)
- Multi-channelaudio including DTS:X & Dolby ATMOS supported over HDMI
- Imagescaling – use a mix of 4K & 1080p displays throughout an installation
- Easy networkset-up using standard Layer 2 or Layer 3 managed switches
- Hugelyscalable I/O, utilizing multicast technology
- Live videounicast preview streams for use with NetworkHD Touch or a custom control UI
- Powerfulaudio matrix functionality – route audio separately from video to any decoder
- CEC controlor RS-232 control of connected devices
- Up to 16x16video walls with image scaling, bezel compensation and rotation
- Custom “NoSource” idle image upload for branded down time
- Support allSD, HD and UHD video formats – including interlaced content
- Batchfirmware update and batch settings functions offers a massive reduction oninstallation times
- Custom EDIDmanagement with import/export
- HDCP 2.2Compliant
- IEEE 802.3afPoE compliant PD
- Compatiblewith NHD-000-RACK4 rack mounting kit (brackets included with decoder)
TechnicalSpecifications
Connectivity
Inputs
1x LAN(PoE): 8P8C “RJ45” Socket ANSI/TIA-568
Outputs
1x HDMI Out:19-pin HDMI Type A
1x RS-232:4-pin Phoenix
Transmission
Transmission Encoding
Proprietarystream encoding. Video compression based on JPEG 2000
End to End Latency
With RX, 1video frame (Passthrough mode) 2 video frames (scaling/video wall) e.g. 16ms @60Hz
Max Transmission Bit Rate
850Mb/s
Video
HDMI
300MHzMax.TMDS Clock
Maximum Data Rate
8.91Gb/sHDMI
Video Resolutions (Max)
1280x720p@50/59.94/60Hz 12bit 4:4:4/RGB
[email protected]/30Hz 12bit 4:4:4/RGB
[email protected]/24/25/29.97/30/50/59.94/60Hz 12bit 4:4:4/RGB
[email protected]/24/25/29.97/30Hz 10/12bit 4:2:2/4:2:0 HDR10 HLG
[email protected]/24/25/29.97/30Hz 8bit 4:4:4/RGB
3840x2160p@50/59.94/60Hz 8bit 4:2:0
[email protected]/60Hz 12bit 4:4:4/RGB
720x576p@50Hz 12bit 4:4:4/RGB
60fpsProgressive 4:4:4/RGB: 640×480 | 800×600 | 1024×768 | 1280×800 | 1280×960 |1280×1024 | 1360×768 | 1366×768 | 1400×1050 | 1440×900 | 1600×1200 | 1680×1050| 1920×1200
Passthrough mode
Output at RXmatches input at TX except for
1) YUV 4:2:0converted to 8bit RGB
2) Forresolutions above 1920×1200 at 50/60Hz framerate is halved
Scaler mode
User-selectablescaled output
1) Allformats converted to 8bit RGB
2) Up to3840x2160p @30Hz
Supported Standards
HDR10 | HLG| BT.2020 | BT.709 | 3D Video
Audio
Audio Formats
PCM up to8ch | Bitstream audio formats including Dolby Atmos & DTS:X
Communication and Control
Ethernet
IEEE 802.1ab1000BASE-T
HDCP
HDCP
2.2 | 1.x
EDID
ProgrammableEDID | EDID Copy/Import | Custom EDID
CEC
ProgrammableCEC Commands | Custom Command Generation (RX Only)
RS-232
ProgrammableRS-232 Commands | Custom Command Generation (RX Only)
INSTALLATION & MOUNTING
Compatible Rack Mount Kit
NHD-000-RACK4
Included Accessories
Wall MountBrackets | Brackets for NHD-000-RACK4
Orientation
Observeproduct chassis text
Power
Power Over Ethernet
IEEE 802.3af(15.4W at PSE)
External Power Supply
Optionalpart: PSU-12V-1A
Nominal Power Consumption
8W
Environmental
Operating Temperature
32F ~ 113F(0C ~ 45C) 10% ~ 90%, non-condensing
StorageTemperature
-4F to ~158F (-20C ~ +70C) 10% ~ 90%, non-condensing
Maximum BTU
51.18 BTU/hr
Dimensions & Weight
Rack Units/Wall Box
<1U Flaton Shelf | 6U in NHD-000-RACK4
Height
25mm/1in
Width
220mm/8.67in
Depth
130mm/5.12in
Weight
0.75kg/1.65lbs
