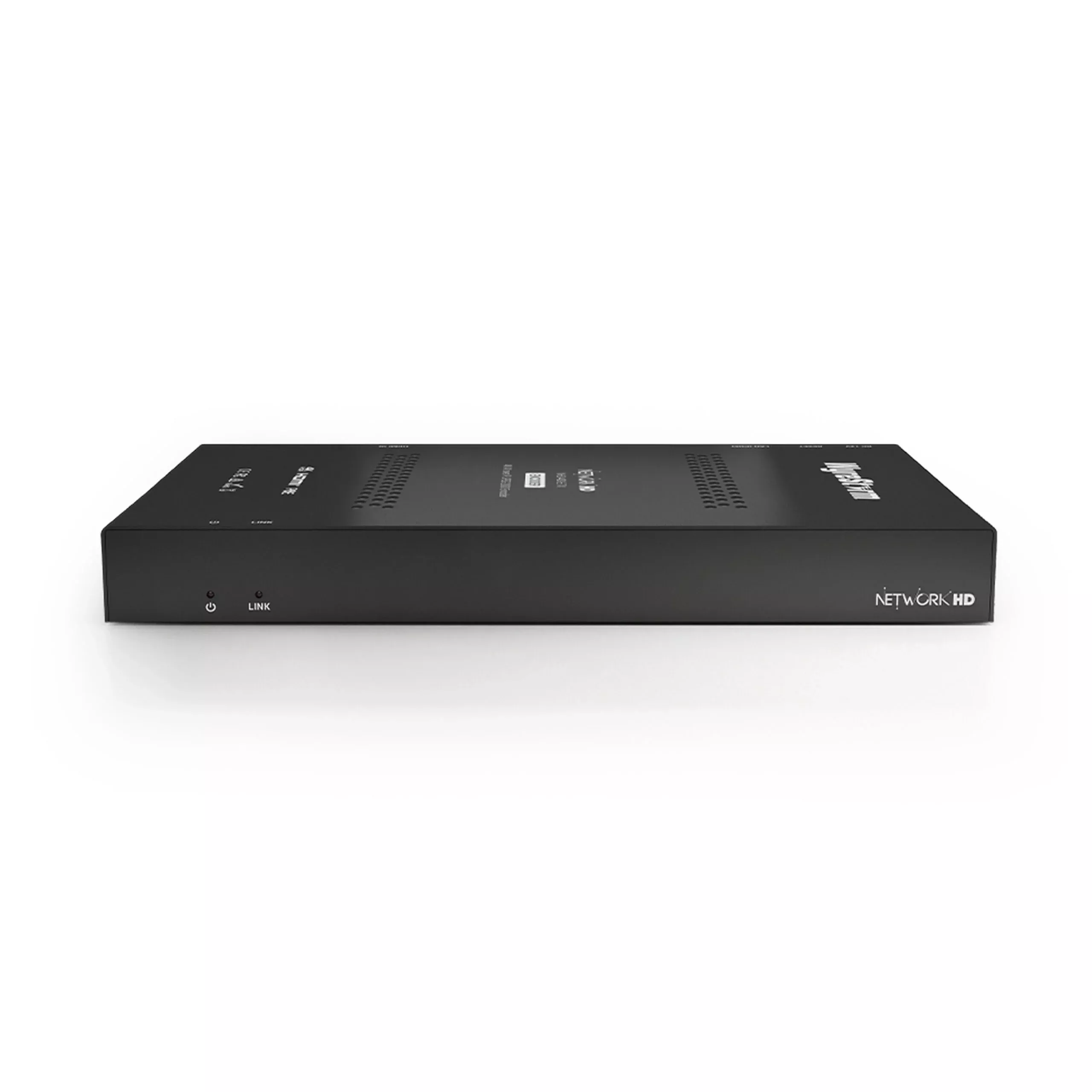

WyreStorm NetworkHD 400 Series 4K AV over IP JPEG 2000 Encoder
The NHD-400-E-TXencoder offers stunning 4K HDR video, multichannel audio support and 4K/2Kscaling to seamlessly handle mixed resolution HDMI sources for matrix and videowall functionality. The reduced cost Type E version removes some control portsbut retains the 400 Series core features. Featuring incredible low latency the400 Series is the ideal AV over IP solution for systems where high quality andlow delay are key requirements, making it perfect for demanding commercialapplications.
Key Features
- Stunningvisually lossless 4K UHD HDMI video with HDR over 1GbE / IP networks
- Ultra-lowend-to-end latencyonly a single video frame (16ms at 60fps)
- Multi-channelaudio including DTS:X & Dolby ATMOS supported over HDMI
- Imagescaling with 400 Series decoders – use a mix of 4K & 1080p displaysthroughout an installation
- Easy networkset-up using standard Layer 2 or Layer 3 managed switches
- Hugelyscalable I/O, utilizing multicast technology
- Live videounicast preview streams for use with NetworkHD Touch or a custom control UI
- Powerfulaudio matrix functionality – route audio separately from video to any decoder
- CECOne-Touch Play & Standby, IR or RS-232 control of connected devices using400 Series decoder
- 400 Seriessupports up to 16×16 video walls with image scaling, bezel compensation androtation
- 400 Seriessupports custom “No Source” idle image upload for branded down time
- Support allSD, HD and UHD video formats – including interlaced content
- Batchfirmware update and batch settings functions offers a massive reduction oninstallation times
- Custom EDIDmanagement with import/export
- HDCP 2.2Compliant
- IEEE 802.3afPoE compliant PD
- Compatiblewith NHD-000-RACK4 rack mounting kit (brackets included with encoder)
TechnicalSpecifications
Connectivity
Inputs
1x HDMI Out19-pin type A
Outputs
1x LAN(PoE): 8P8C “RJ45” Socket ANSI/TIA-568
Transmission
Transmission Encoding
Proprietarystream encoding. Video compression based on JPEG 2000
End to End Latency
With RX, 1video frame (Passthrough mode) 2 video frames (scaling/video wall) e.g. 16ms @60Hz
Max Transmission Bit Rate
850Mb/s
Video
HDMI
300MHzMax.TMDS Clock
Maximum Data Rate
8.91Gb/sHDMI
Video Resolutions (Max)
1280x720p@50/59.94/60Hz 12bit 4:4:4/RGB
[email protected]/30Hz 12bit 4:4:4/RGB
[email protected]/24/25/29.97/30/50/59.94/60Hz 12bit 4:4:4/RGB
[email protected]/24/25/29.97/30Hz 10/12bit 4:2:2/4:2:0 HDR10 HLG
[email protected]/24/25/29.97/30Hz 8bit 4:4:4/RGB
3840x2160p@50/59.94/60Hz 8bit 4:2:0
[email protected]/60Hz 12bit 4:4:4/RGB
720x576p@50Hz 12bit 4:4:4/RGB
60fpsProgressive 4:4:4/RGB: 640×480 | 800×600 | 1024×768 | 1280×800 | 1280×960 |1280×1024 | 1360×768 | 1366×768 | 1400×1050 | 1440×900 | 1600×1200 | 1680×1050| 1920×1200
Passthrough mode
Output at RXmatches input at TX except for:
1) YUV 4:2:0converted to 8bit RGB
2) Forresolutions above 1920×1200 at 50/60Hz framerate is halved
Scaler mode
User-selectablescaled output
1) Allformats converted to 8bit RGB
2) Up to3840x2160p @30Hz
Supported Standards
HDR10 | HLG| BT.2020 | BT.709 | 3D Video
Audio
Audio Formats
PCM up to8ch | Bitstream audio formats including Dolby Atmos & DTS:X
Communication and Control
Ethernet
IEEE 802.1ab1000BASE-T
HDCP
HDCP
2.2 | 1.x
EDID
ProgrammableEDID | EDID Copy/Import | Custom EDID
CEC
ProgrammableCEC Commands | Custom Command Generation (RX Only)
RS-232
ProgrammableRS-232 Commands | Custom Command Generation (RX Only)
INSTALLATION & MOUNTING
Compatible Rack Mount Kit
NHD-000-RACK4
Included Accessories
Wall MountBrackets | Brackets for NHD-000-RACK4
Orientation
Observeproduct chassis text
Power
Power Over Ethernet
IEEE 802.3af(15.4W at PSE)
External Power Supply
Optionalpart: PSU-12V-1A
Nominal Power Consumption
8W
Environmental
Operating Temperature
32F ~ 113F(0C ~ 45C) 10% ~ 90%, non-condensing
StorageTemperature
-4F to ~158F (-20C ~ +70C) 10% ~ 90%, non-condensing
Maximum BTU
51.18 BTU/hr
Dimensions & Weight
Rack Units/Wall Box
<1U Flaton Shelf | 6U in NHD-000-RACK4
Height
25mm/1in
Width
220mm/8.67in
Depth
130mm/5.12in
Weight
0.75kg/1.65lbs
