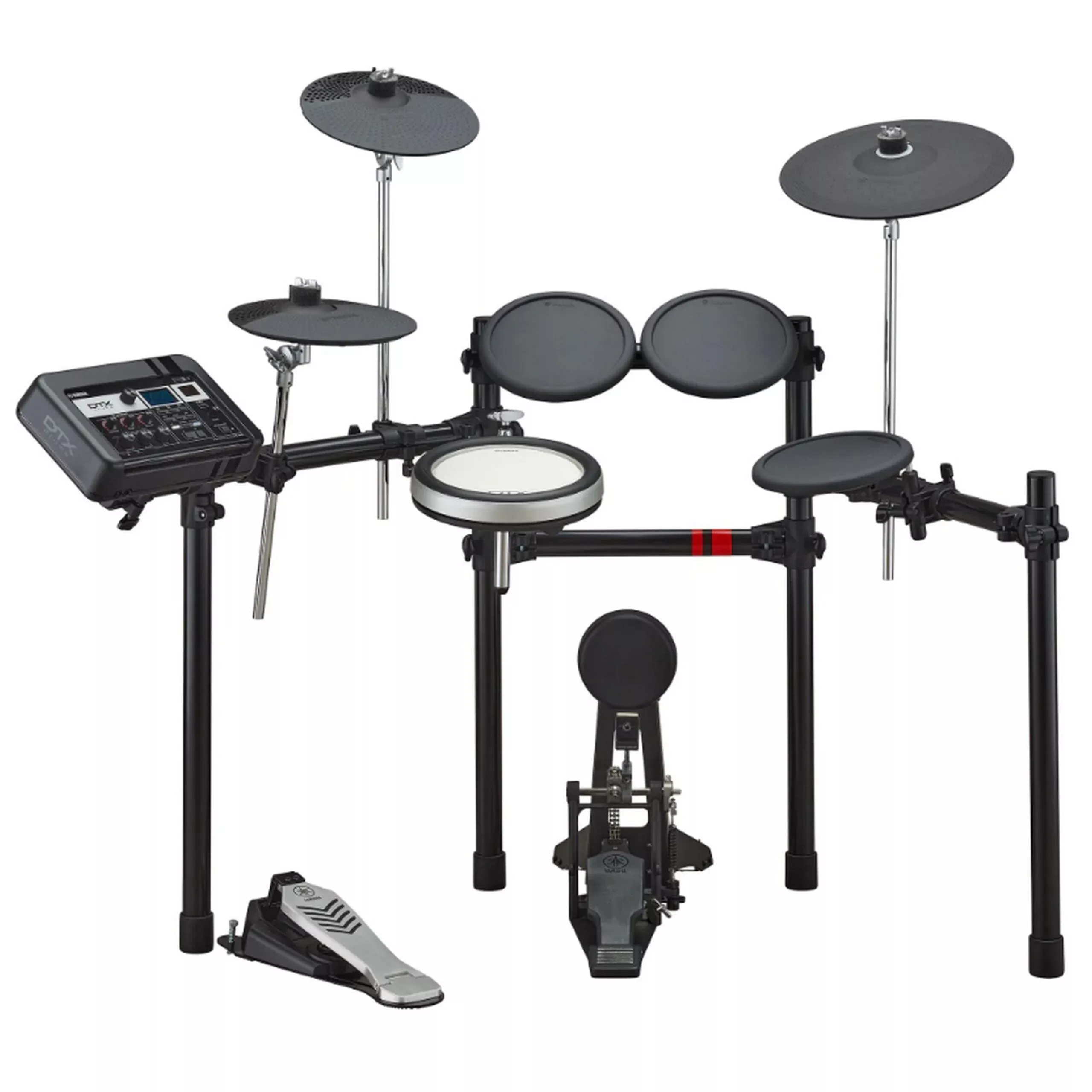

Yamaha DTX6K-X Electronic Drum Set
The DTX6Series features the innovative KIT MODIFIER, which sparks creativity anddelivers superb performance in a compact configuration.
The originalYamaha TCS (Textured Cellular Silicone) head used in the flagship modelscombines with real sound and ambience recorded in a world-renowned studio toprovide an authentic playing experience.
The DTX6Series is recommended for all drummers who want to have fun, play like a proand hope to easily transfer their skills to acoustic drums.
Real sounds that drive the drummer
Nocompromises have been made in recording the sound of the instruments themselves- the key to any drum sound along with the ambience of the place where they areplayed. The DTX-PRO has been fine-tuned to follow the drummer’s performance andallow for maximum expression.
Intuitive functionality that stirscreativity
The KITMODIFIER featured on the DTX-PRO offers drummers limitless possibilities.
Kit Modifiercondenses the sound creation know-how that Yamaha has accumulated over decadesinto three knobs: AMBIENCE, COMPRESSION, and EFFECT. A wide range of tonalpossibilities are availablefrom the natural sound of acoustic drums through tolive performance sounds carefully crafted by engineers.
The AMBIENCEknob controls the reverberation of the drum sound; for an acoustic drum kit, upto 50% of the memory features the real ambience components of the recordingstudio, while 51-100% is high-quality digital reverb.
The COMP andEFFECT knobs utilize the “1 knob” control technology featured inYamaha PA products.
COMPcontrols the compression effect and brings them to the front, while EFFECTcontrols effects that have been optimized for preset kits.
A playing experience in a class of its own
The DTX6Series is equipped with TCS (Textured Cellular Silicone) heads providingunparalleled levels of feel and quietness.
Yamaha’soriginal TCS head uses a foamed silicone material that contains innumerable airbubbles. With the perfect level of firmness and rebound that allows players tohit hard, TCS offers a natural, pleasant feel that inspires you to want to keepplaying, and because the surface never loosens, every strike feels perfect.
In addition,a unique floating structure without any direct contact with the head and bodyparts prevents vibration from being transmitted elsewhere, while also improvingsensitivity, and the air bubbles in the TCS head serve as a cushion to softenthe stick sound.
Key Features
- Create yourown unique sounds with AMBIENCE, COMP and EFFECT kit modifier knobs
- TCS headshelp to achieve a pleasing, natural feel and rebound that makes you want tokeep playing
- 3-Zone padsfor the snare and ride cymbals that can be choked and muted
- Ride cymbalequipped with hit point detection function
TechnicalSpecifications
Snare
(8-inch TCSpad with 3 zones)
Tom Pad
(7-inchrubber pad)
Floor Tom Pad
(7-inchrubber pad)
Kick Pad
(5-inchrubber pad, double foot pedal compatible)
Hi-Hat Pad
10-inch padand HH65 hi-hat controller
Crash cymbal 1
10-inch padwith choke-ability
Ride cymbal
(13-inch padwith 3 zones)
Footprint (average)
1,000 mm x1,100 mm
Weight
25.2 kg
Dimensions
Width: 303mm (11-15/16 in)
Height: 196mm (7-11/16 in)
Depth: 66 mm(2-5/8 in)
Weight
1.5 kg (3 lb5 oz)
Maximum Polyphony
256 notes
Effects
For eachInst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1/ Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ(*1) Insertion effects can be used only for specific Inst.
Drum Kits
Preset: 40Kits, User: 200 Kits
Voices
712
Click Sets
30
Tempo
30 to 300BPM, Tap tempo supported
Time Signatures
1/4 to 16/4,1/8 to 16/8, and 1/16 to 16/16
Subdivisions
Accents,quarter notes, eighth notes, sixteenth notes and eight-note triplets
Others
Individualclick volume control, wav import, timer
Training Types
10
Songs
Preset: 37songs, User: 1 song
Audio Files
Import Limit:1,000 files
MaximumLoadable Sample Time: 760 seconds (44.1 kHz, 16 bit, mono), 380 seconds (44.1kHz, 16 bit, stereo)
Sample Format
WAV
Internal Memory
Maximum of90 seconds
USB Flash Drive
Maximum of90 minutes per file
Format
Record/playback:WAV (44.1 kHz, 16 bit, stereo)
Connectors
DC IN: DC IN(+12V)
Headphones: Headphones(standard stereo phone jack x 1)
AUX IN: AUXIN (stereo mini jack x 1)
Output: OUTPUTL/MONO, R (standard phone jack, one for each)
USB: USB TODEVICE, USB TO HOST
MIDI: MIDIOUT
Trigger Input
Triggerinputs 1, 14: (Standard stereo phone, L: Trigger, R: Rim switch / Trigger),2/3, 4/5, 6/7, 12/13: (Standard stereo phone, L: Trigger, R: Trigger), 8, 9,10, 11: (Standard stereo phone, L: Trigger, R: Rim switch) *Maximum 14 of padsto be connected (when Y-cable is used)
Display
Full Dot LCD(128-64 dot)
Accessories
AC adapter(PA-150 or an equivalent recommended by Yamaha)*2, Owner’s Manual, module holder,module holder wing bolts (x 4), Cubase AI Download Information (*2 May not beincluded depending on your area. Check with your local Yamaha dealer)
