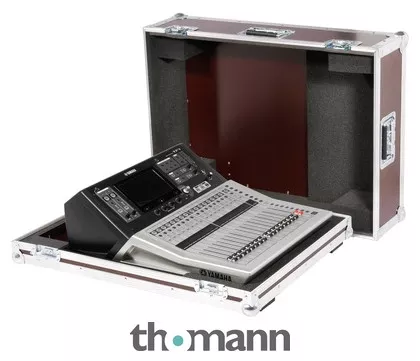

Bundle offer comprising
Yamaha TF-1
Digital Mixer
- 16 Analog D-PRE inputs – max 40 Channels 2x 2TR in and USB in USB storage device
- Touchscreen
- Multitrack functions: Max 34 x 34 digital record/playback channels
- 16 XLR Outputs
- 1 Knob compressor
- 1 Knob EQ
- GainFinder-Function
- Programmed Sound Presets
- Parametric EQ and 2 Dynamics per channel
- 8 FX Processors
- 10 Graphic EQs
- 20 AUX Buses: 8 mono, 6 stereo
- Dimensions: 510 x 599 x 225 mm
- Weight: 13.5 kg
- Incl. Nuendo Live software licence
- Optional Rack mounting kit RK5014: Article Nr. 194639 (not included in delivery)
- Matching case: Art.367337 (not included in delivery)
Thon Case Yamaha TF-1
Mixer Case
- Suitable for Yamaha TF-1
- Material: 7mm Plywood
- Phenolic resin laminate
- 30 x 30 mm Aluminum edges
- 4 Medium butterfly latches
- 6 Folding handles
- 2 Skid strips
- Steel ball corners
- 15 cm Cable channel
- Custom made foam padding for the entire case
- The connectors are freely accessed, the device can be used inside the lower part
- Exterior dimensions (W x D x H): 795 x 590 x 290 mm
- Weight: 14.6 kg
- Made in Germany
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJune 2015
- Item number367423
- Sales Unit1 piece(s)
- User Interface Physical/remote
- Number of faders 17
- DSP Input channels 40
- Number of Microphone Inputs 16
- Physical outputs 14
- Digital stagebox connection Dante
- Hotspot No
- Multitrack Record No
- integratated Player/Rec via USB/SD stereo
- 19″ Rackmount Optional
- DSP Output Channels20
- Busses20
- Number of Mono Line Inputs0
- Number of Stereo Line Inputs2
- EthernetEthernet
- Soundcard interfaceUSB-B
- Recorder FormatWAV/MP3
- Scribble StripsYes
- RTANo
- FX Processor8
- 31 Band EQ10
- Matrix0
- DCA/VCA Groups8
- MIDI InterfaceNo
- Sample rate48 kHz
- Monitor AppsYes
- Separate Personal Monitor systemNo
- Expansion Card slots1
- Digital ADATNo
- Digital SPDIFNo
- Digital AES3/ASESEBNo
- Digital MADINo
- Digital DanteYes
- 110V capableYes
- CaseIncluded
- Height225 mm
- Width510 mm
- Depth599 mm
- Weight13,5 kg
